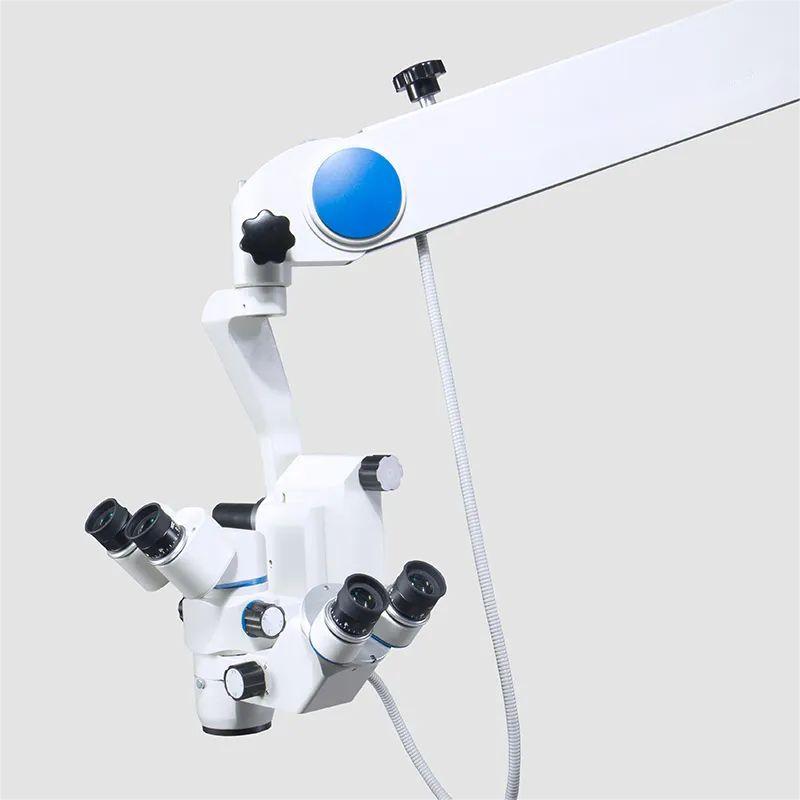

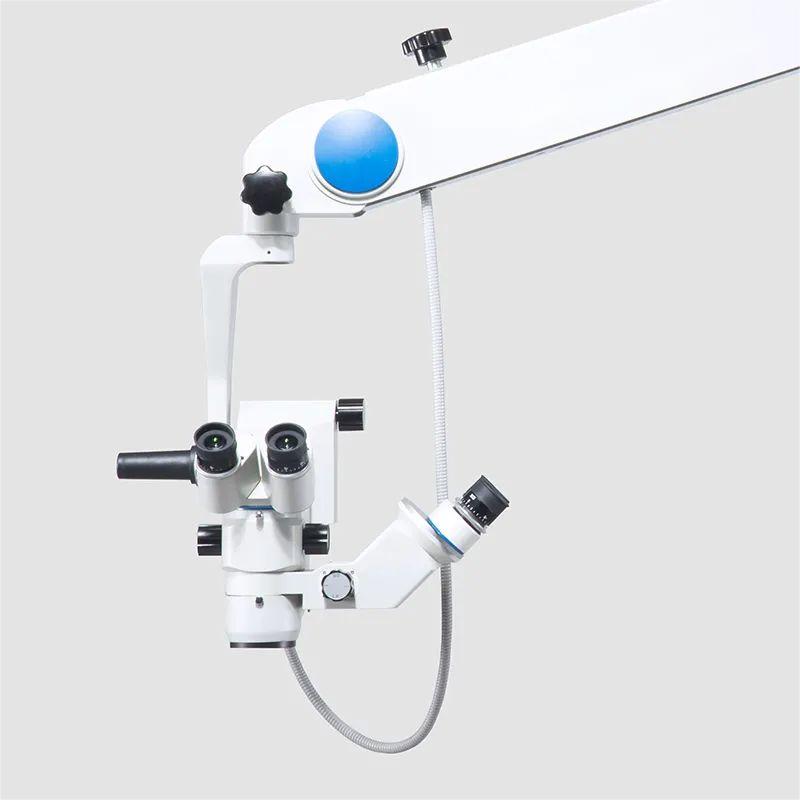

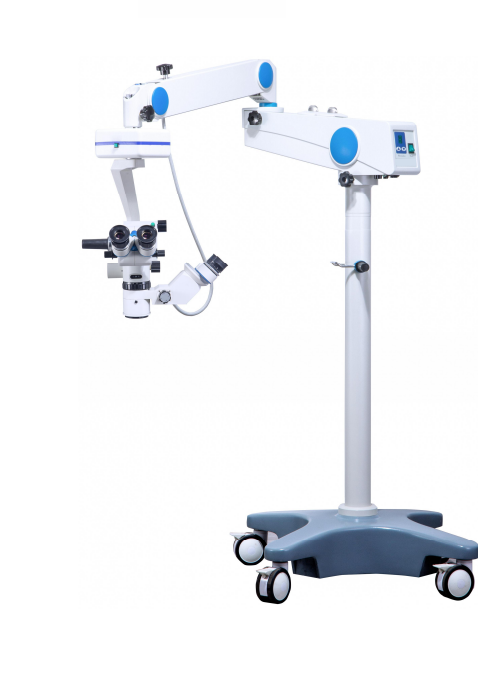

Surgery FD-600-3C Medical Microscope ophthalmology operation microscope
Specification
| Eyepieces |
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D.
|
| Binocular tube | 30°~90°variable angle binocular tube, add new pupil distance adjustment |
| Magnification | 6:1 zoom, motorized, magnification 4.5x~27.3x; field of view Φ44~Φ7.7mm |
|
Coaxial assistant’s binocular tube
|
manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm
|
| Coaxial illumination | illumination diameter of light spot Φ50mm, illumination intensity 60000lux |
| Objectives | f200mm(175mm, 250mm etc ) |
| Focusing | motorized, range +/-25mm |
| X-Y translator | move in X-Y direction motorised, range +/-25mm |
| Maximum length of arm | 1200mm |
| Stand |
swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm |
| Foot switch |
waterproof, 8 function steps
|
| Weight | 130kg |
