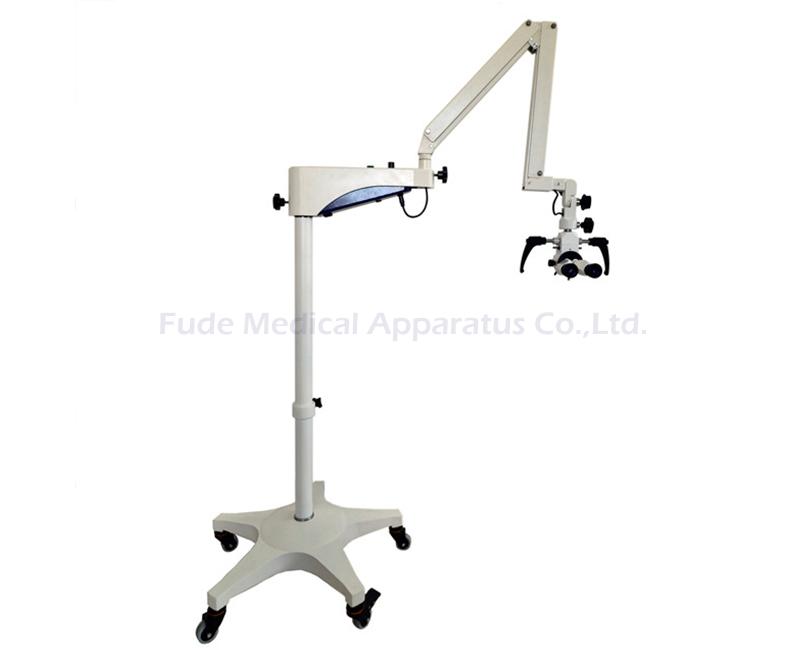

FD-A102 2.4x-12x Ophthalmic and Dental Operating Microscope

Observation angle

45 degree inclined

Magnification of observation

6x

Interpupillary distance

50mm-80mm

Diopter adjustment

±5D

Two Objectives

F=200mm, 300mm, Two Objectives

Magnification changer

3-step: 0.6x, 1.0x, 1.6x

Total Magnification

2.4X-12X

Linear field

81-15.8mm

Fine focusing distance

10mm

Illumination

Coaxial illumination with 10W LED source, brightness adjustable

Filter

Build-in green and yellow filter

Arm and stand

Two part arms and one floor stand

Objective Focus

F=200mm

F=250mm(Optional)

F=300mm

F=400mm(Optional)

magnification

1.6x

1.0x

0.6x

1.6x

1.0x

0.6x

1.6x

1.0x

0.6x

1.6x

1.0x

0.6x

Total magnification

12x

7.5x

4.7x

9.6x

6x

3.7x

8x

5x

3x

6x

3.8x

2.3x

Linear field(mm)

15.8

25.3

40.6

19.7

31.6

50.7

23.6

37.9

60.8

31.5

50.5

81.0

Exit pupil diameter(mm)

1.04

1.66

1.04

1.66

1.04

1.66

1.04

1.66

Exit pupil distance(mm)

15.3

Resolution (LP/mm)

67

44.5

29.7

60

35.4

27

47.2

31.5

23.6

35

27

19.8
