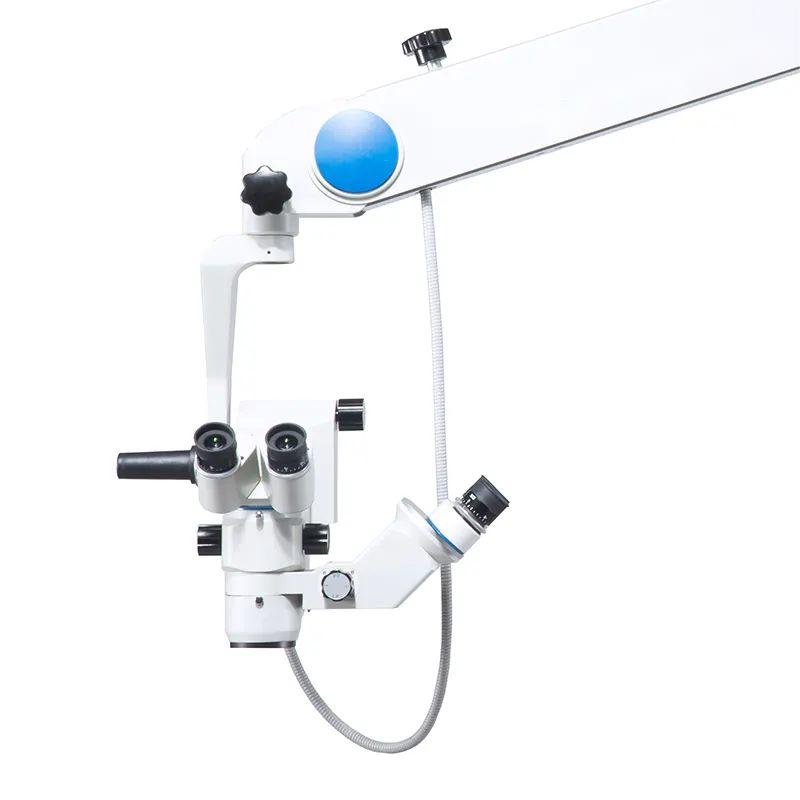

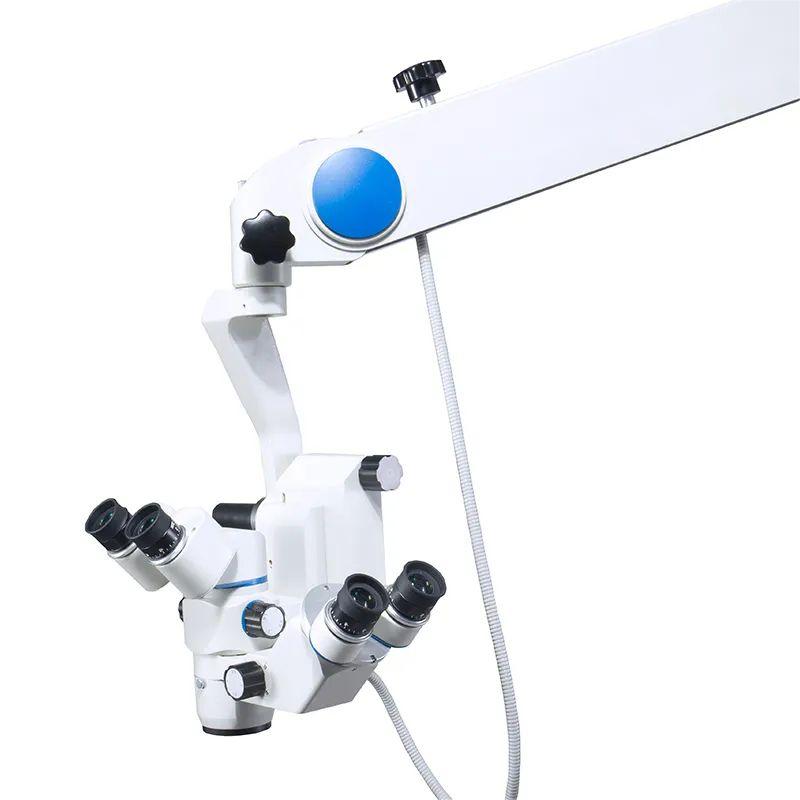

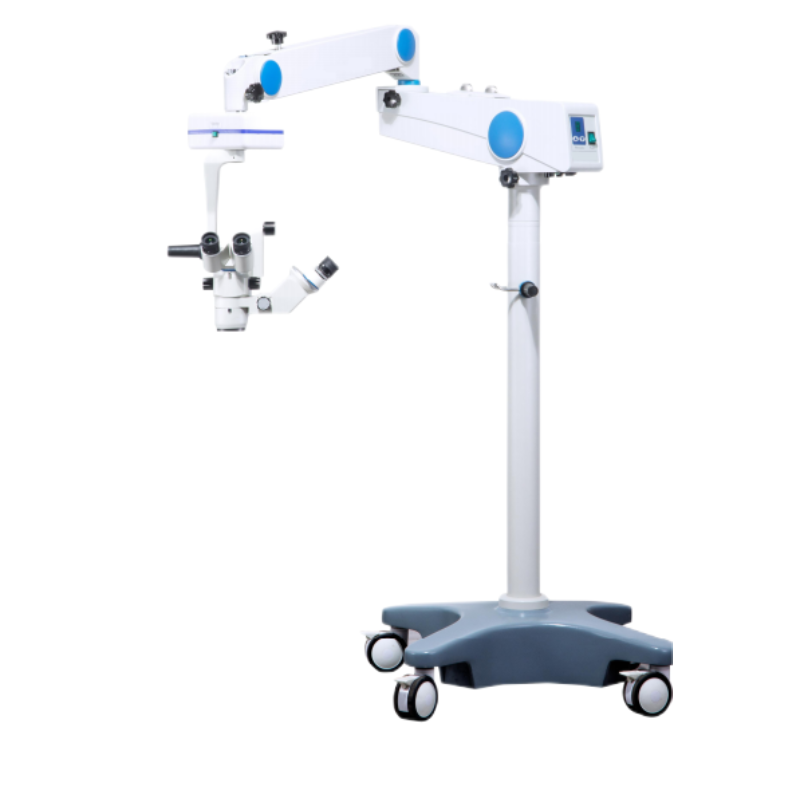

Professional FD-600-3B Ophthalmic surgical instruments eye surgical operating microscope
Specification
| Eyepieces |
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 125mm
|
| Binocular tube | high brightness 45°binocular tube |
| Magnification | manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm |
|
Coaxial assistant’s binocular tube
|
manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm
|
| Coaxial illumination | illumination diameter of light spot Φ50mm, illumination intensity 60000lux |
| Objectives | f200mm(175mm, 250mm etc ) |
| Focusing | motorized, range +/-25mm, speed 33s/whole distance |
| X-Y translator | move in X-Y direction motorised, range +/-30mm |
| Maximum length of arm | 1100mm |
| Stand | bran-new economical stand |
| Foot switch |
waterproof
|
| Weight | 115kg |
