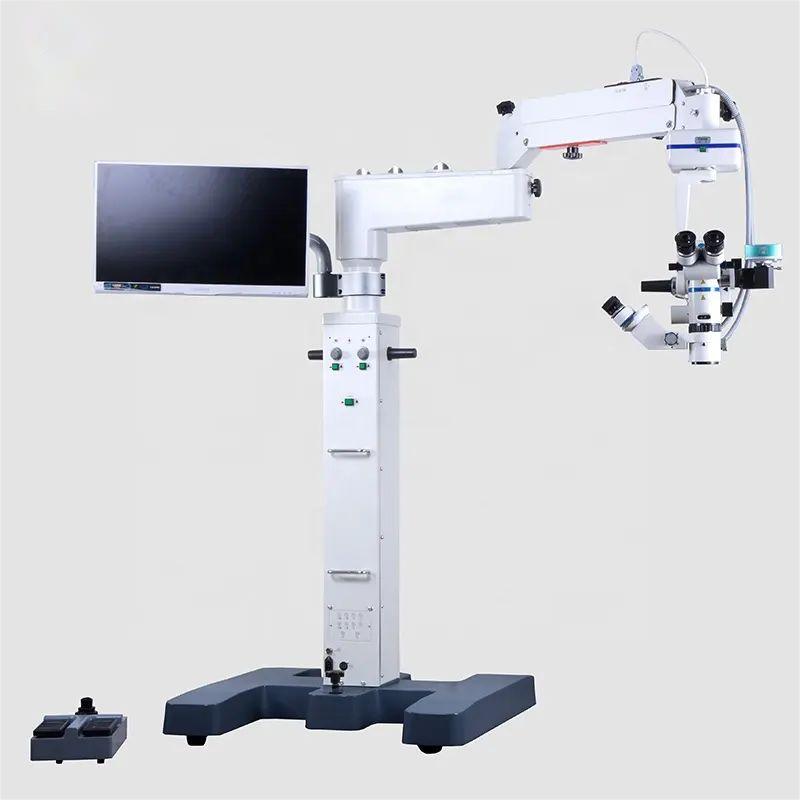

Model
|
FD-3
|
|
Function
|
Ophthalmic
|
|
Surgical microscope
|
|
|
Magnification
|
motorized zoom system, 1:6 zoom ratio, magnification 4.5x~27x
|
|
Focusing range
|
50mm
|
|

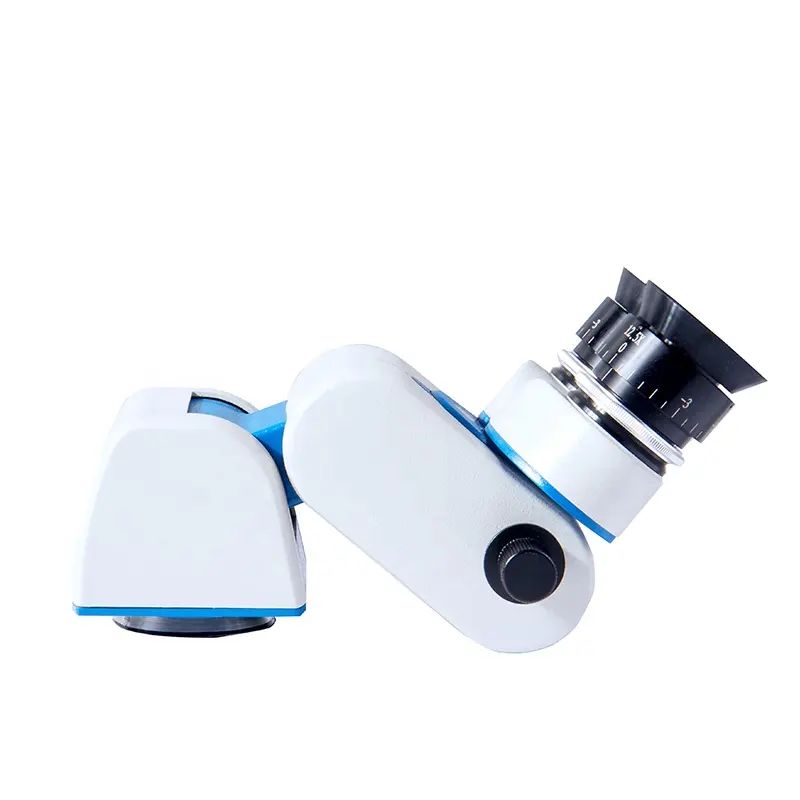

Binocular tube
|
30°~90° tiltable tube (0°~200° optional)
|
|
Eyepiece
|
12.5x / 10x
|
|
Objective lens
|
F 200mm(175mm, 250mm, 300mm optional)
|
|
pupil distance
|
55mm~75mm
|
|
diopter adjustment
|
+6D ~ -6D
|
|
Feild of veiw
|
Φ44~Φ7.7mm
|
|
X-Y translator
|
Motorized by foot switch, ±30mm
|
|
Deep View
|
depth of field incresing system
|
|

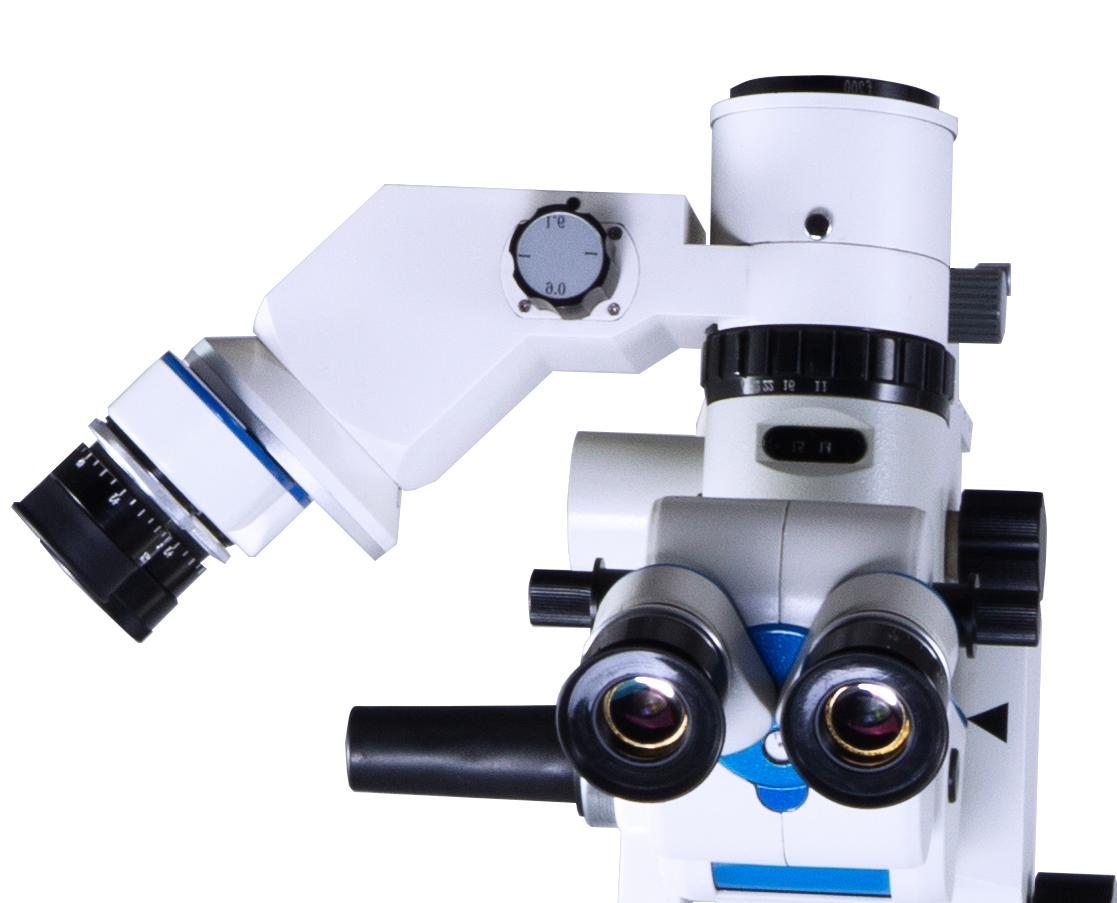

Assistant tube
|
Integrated with independent steps changer and same depth of veiw as main tube
|
|
Reset functions
|
YES
|
|
Illumination
|
|
|
System
|
Coaxial illumination
|
|
Light source
|
Halogen lamp
|
|
Light intensity adjustment
|
Continuous brightness adjustment 0-100000lux
|
|
Retinal protection device
|
Built-in
|
|
Fiber optic illumination
|
Dual fiber
|
|
Field of illumination
|
Φ50mm
|
|
Red reflex
|
Adjustable
|
|
Arm & Base
|
|
|
Mount
|
Floor stand
|
|
Maximum arm
extension |
1200mm
|
|
Height from objective to floor
|
800mm
|
|
Base size
|
800*800mm
|
|
Brake system
|
Four-wheel brake
|
|

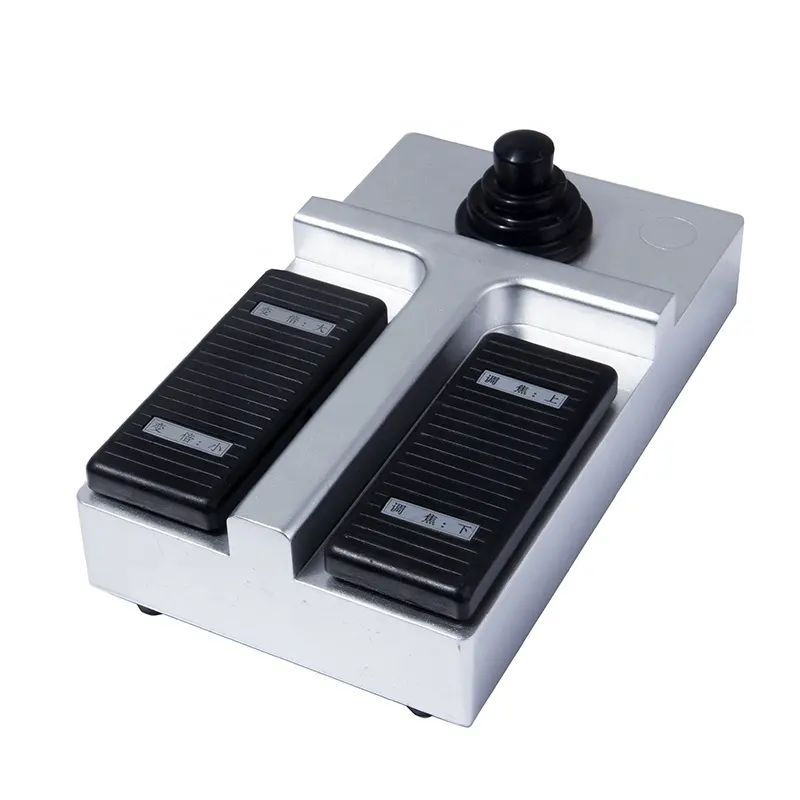

Foot switch
|
Waterproof, 8 function steps
|
|
Others
|
|
|
Weight
|
169KG
|
|
Power socket
|
220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ
|
|
Power consumption
|
300W
|
|
Safety class
|
class I
|
|
Accessories
|
|
|

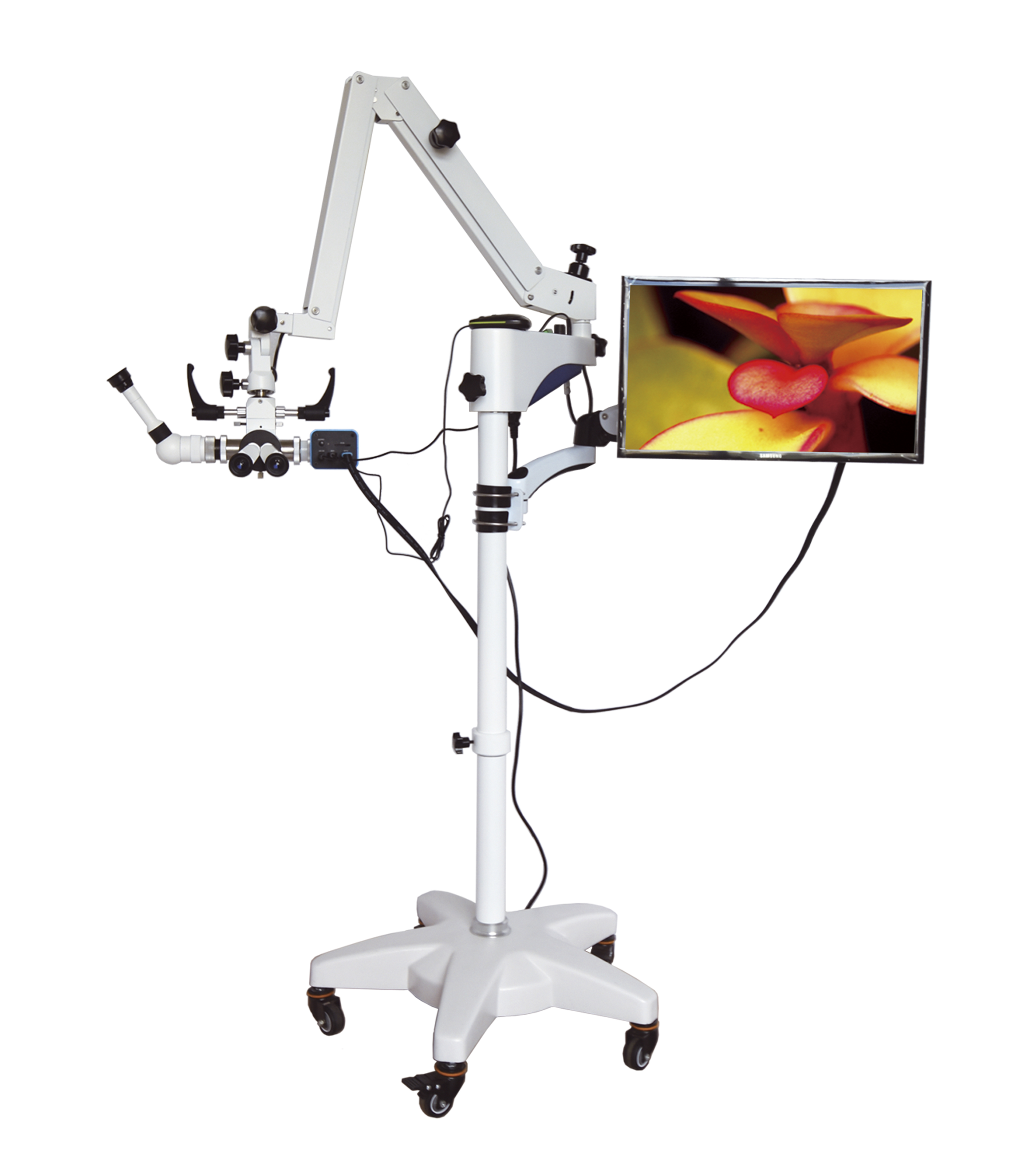

CCD Camera system
|
Beam splitter, CCD adapter, CCD, Display
|
|
BIOM system
|
Invertor, Holder, 90D lens, 130D lens
|
|
Integrated Video Adapter
|
SONY / CANON Camera
|
