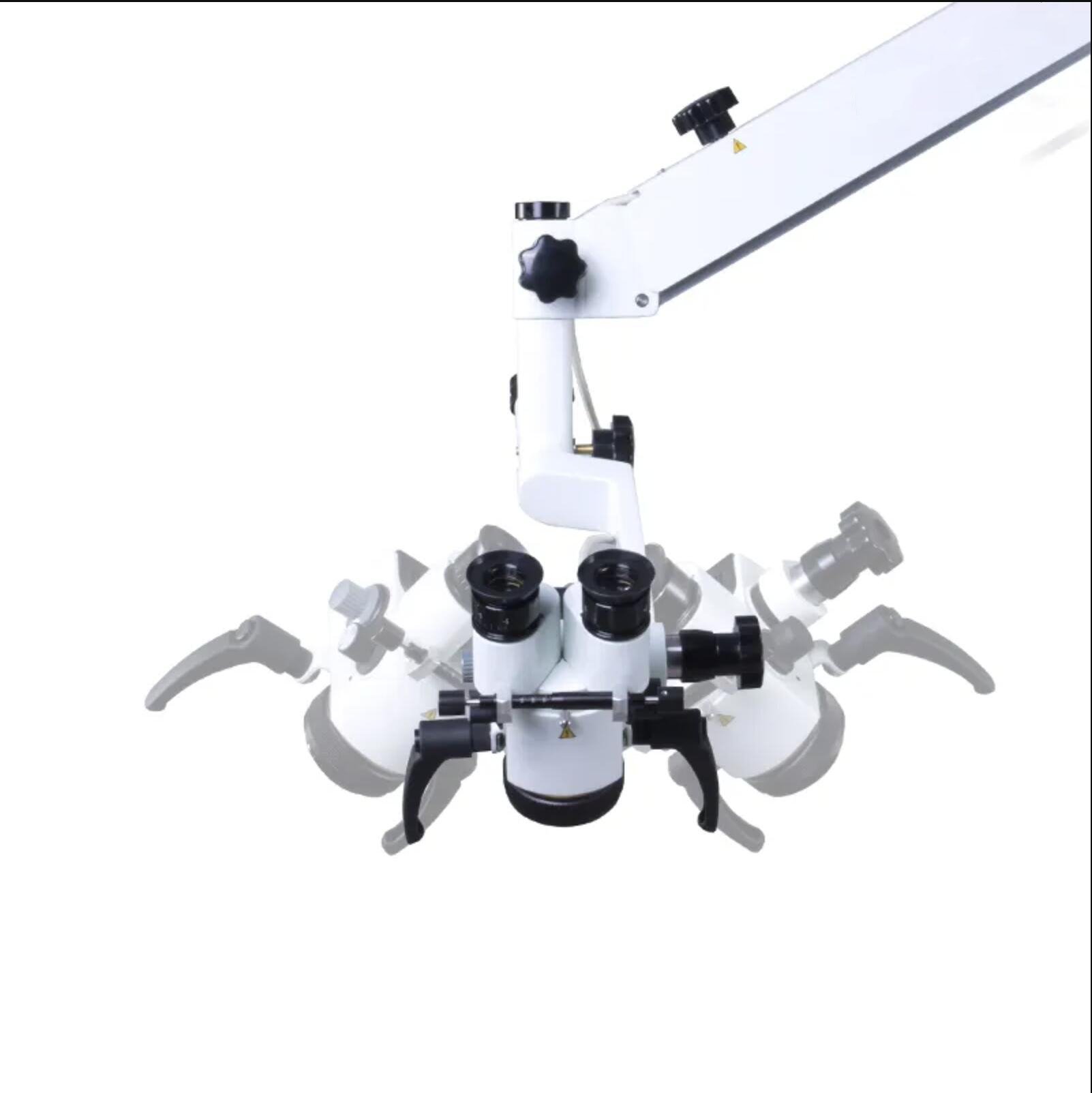

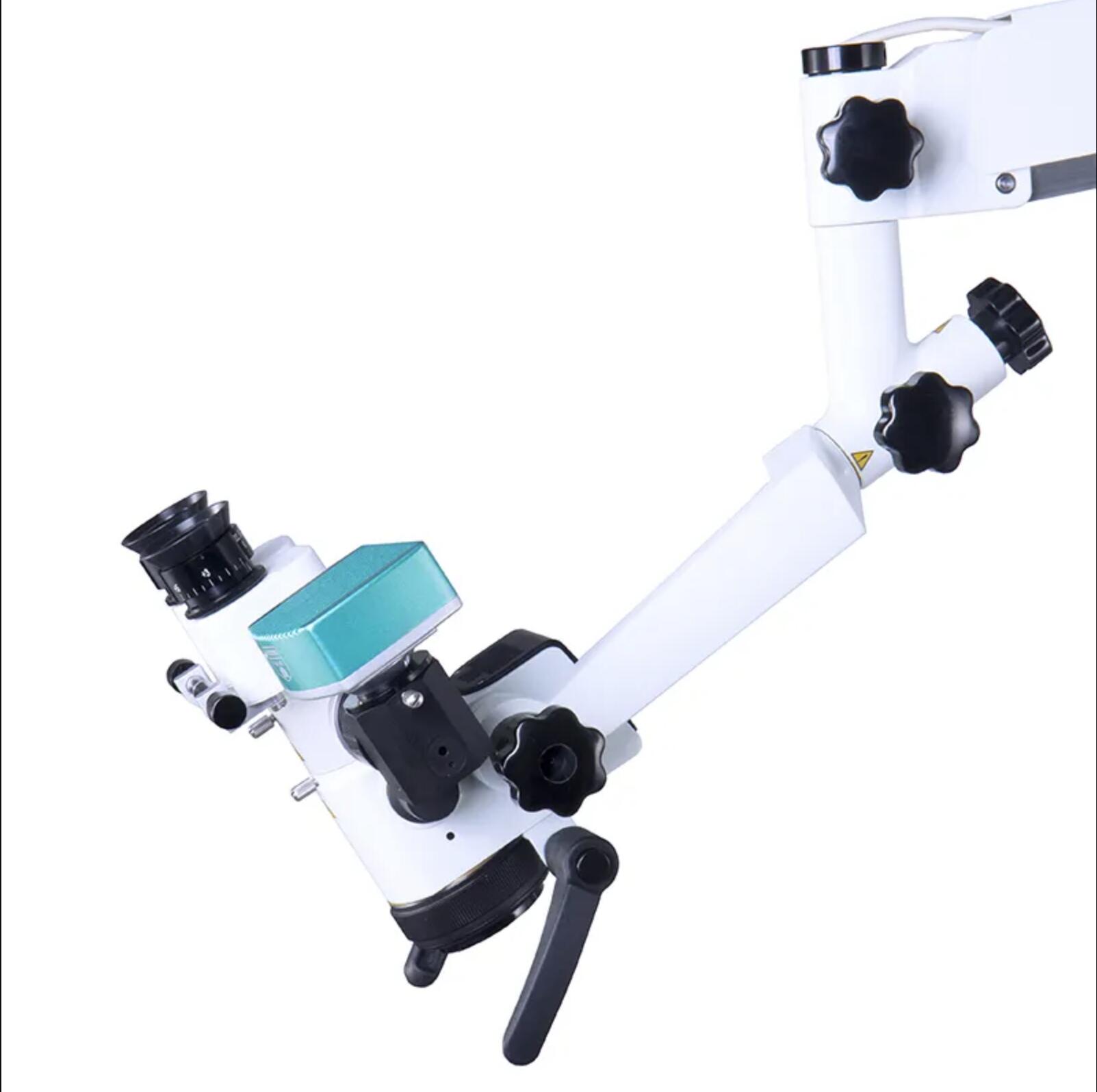

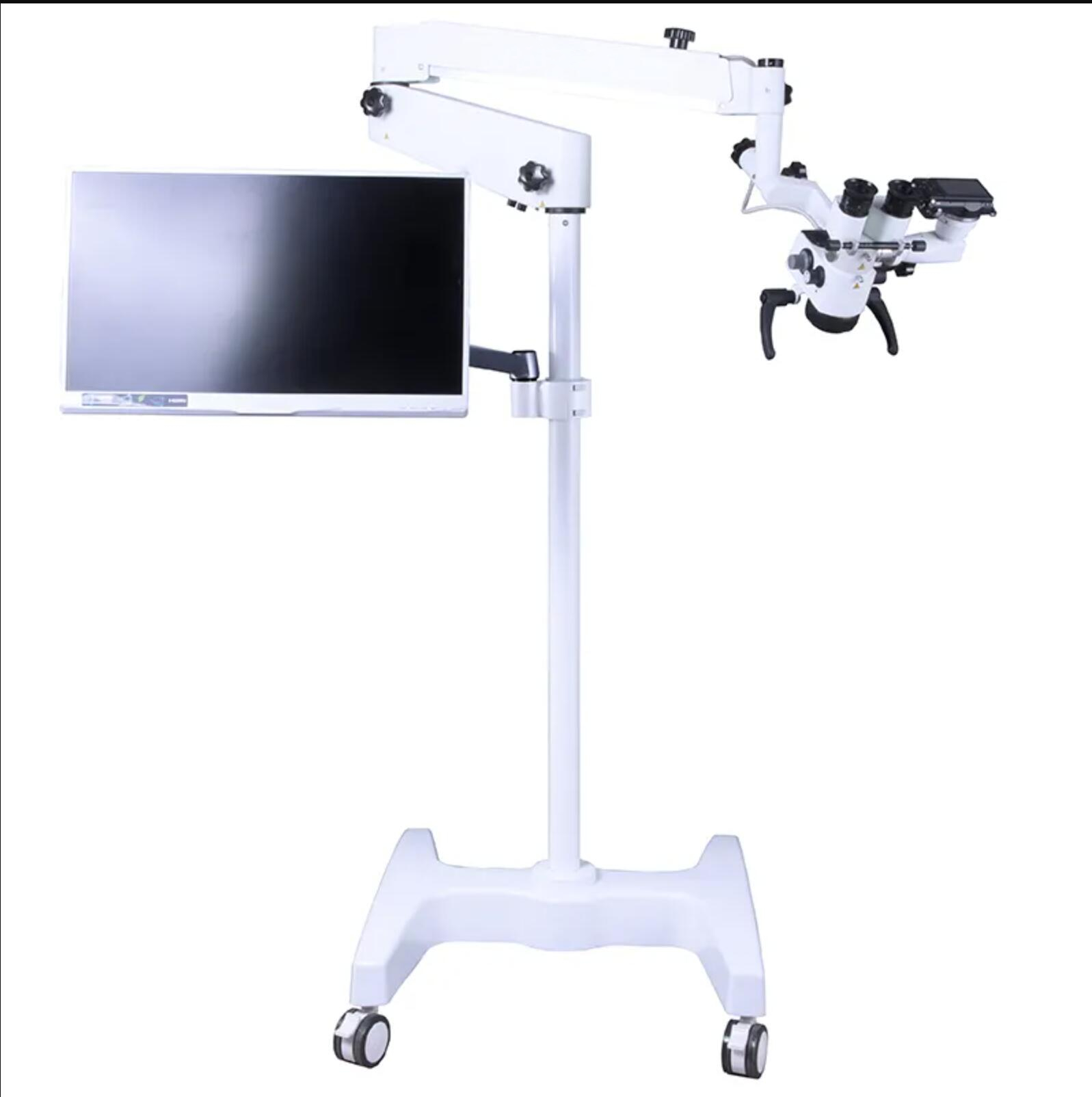

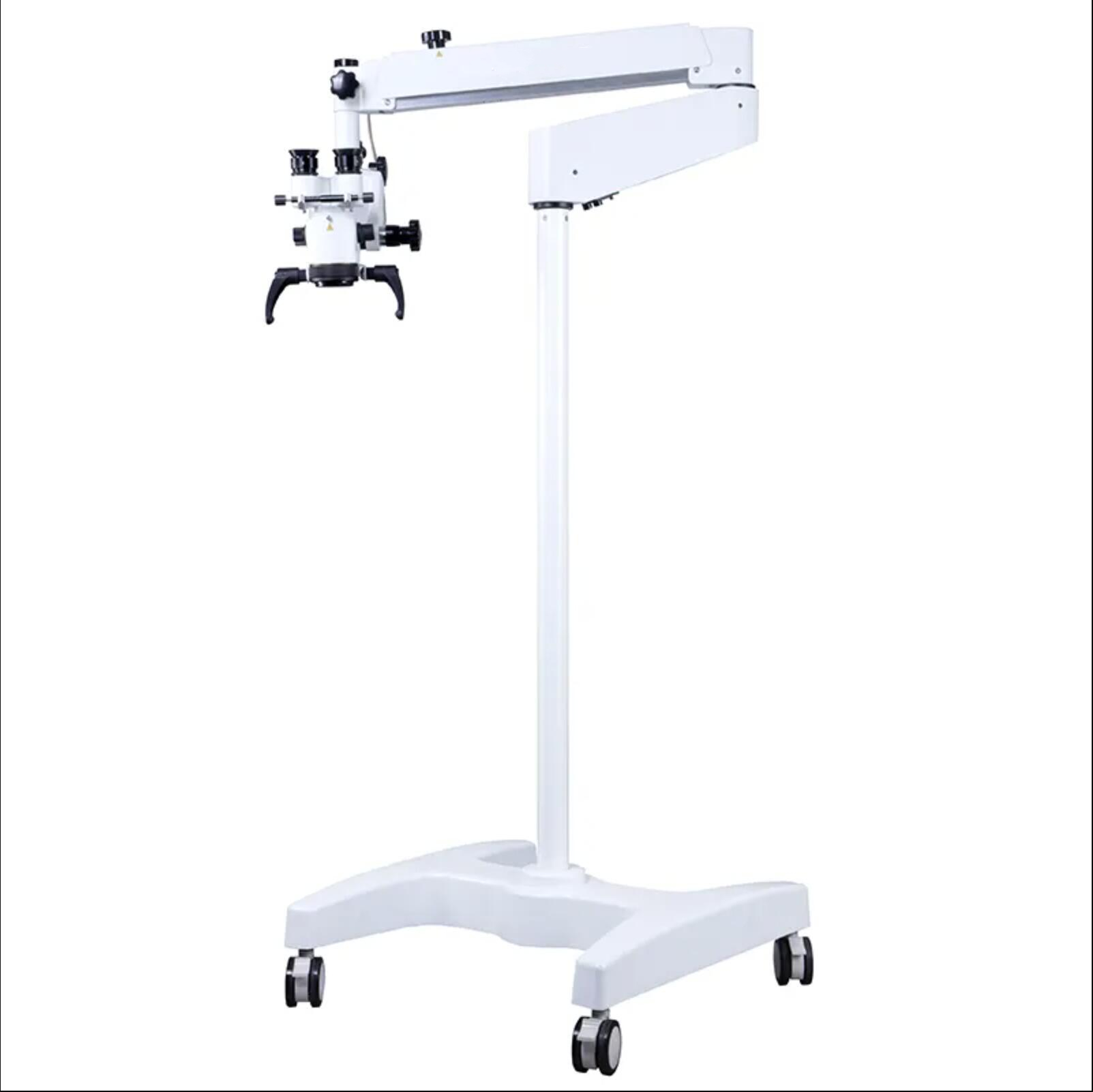

FD-500 operation microscope: high resolution and high resolution optical system with strong stereo sense and deep depth of field. LED cold light lighting, brightness continuous adjustable, manual drum turntimes. The machine is small, flexible and convenient to move. It is suitable for the microsurgical operationsin the Department of Stomatology and the Department of ENT.
| Eyepieces |
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter
adjustment range +6D ~ -6D.
|
| Binocular tube | 90° binocular tube |
| Magnification |
manual 3-step changer, ratio 0.6,1.0,1.6 , total magnification 3.75x, 6.25x,10x ( F 250mm)
|
| illumination |
LED cold light, strong light, longer lifetime, brightness adjustable infinitely, illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm,Φ32mm,Φ20mm
build-in small-spot, both blue and yellow light filter.
|
| Objectives | F=250mm (180mm-300mm adjustable objectives for optional) |
| Rotating head for all direction | operate by two handles,free and easy to operate in 0-360° |
| Maximum length of arm | 1100mm |
