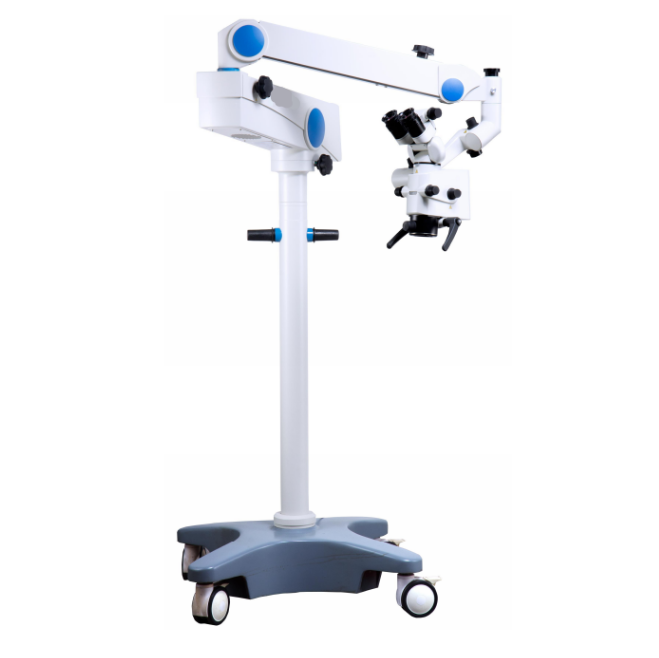

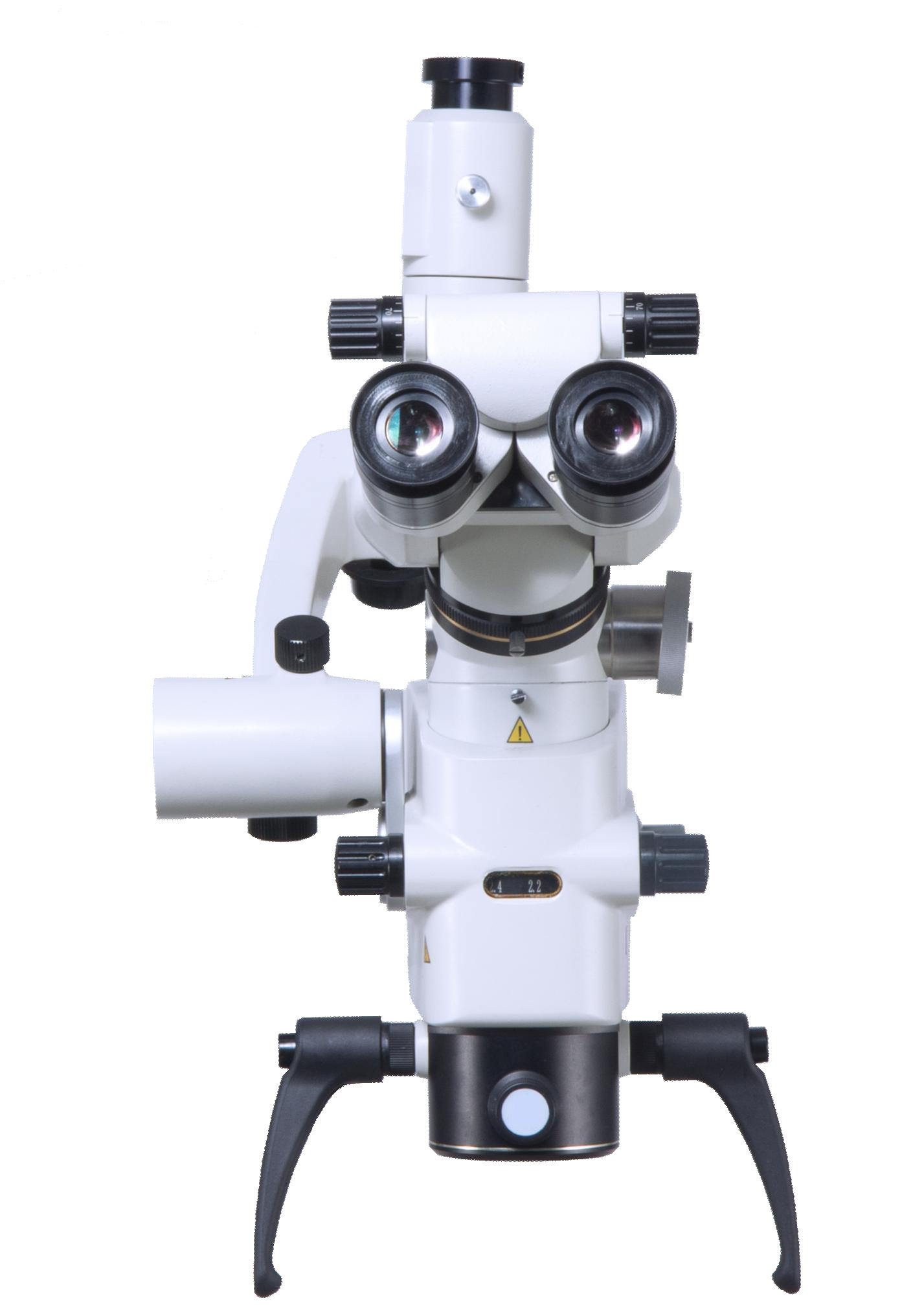

FD-520 Ent Surgical Microscope / Dental Operation Microscope

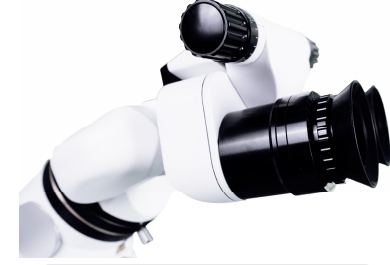

Eyepieces
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range
+6D ~ -6D.
Magnification
1:6 manual continuous zoom, magnification 2.5x~21x; field of view Φ78.6~Φ9mm
X-Y movement device
X direction swing 45°, Y direction swing 45°
Coaxial illumination
LED cold light ,illumination diameter of light spot Φ80mm, illumination intensity 60000lux
build-in small-spot, both blue and yellow light filter.
Objectives
300mm(±15mm adjustment)

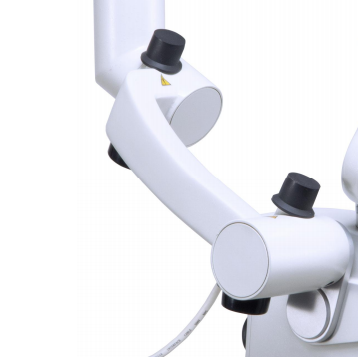

Maximum length of arm
1100mm
New stand
swing angle of the carrier arm 0 ~300°,height from objective to floor 730mm
Weight
107kg
