  • Product description: Straight Observation FD-103Z operation microscope be Connected to the Column of ENT Unit Microscope
  • INQUIRY

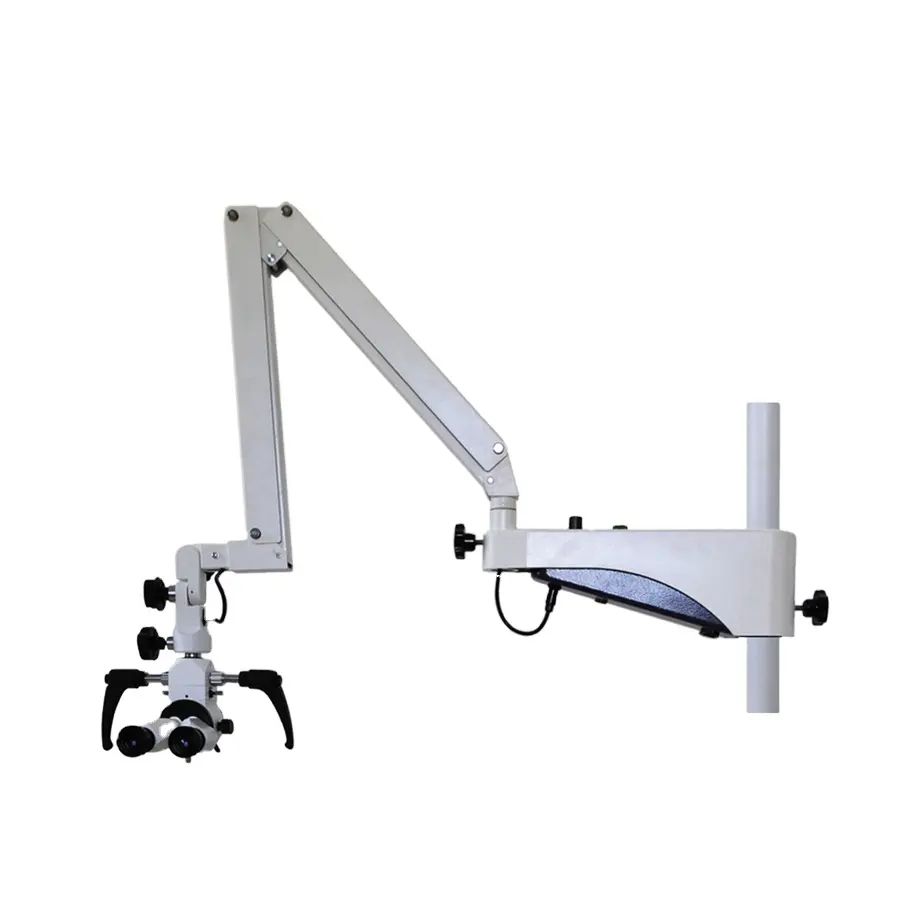

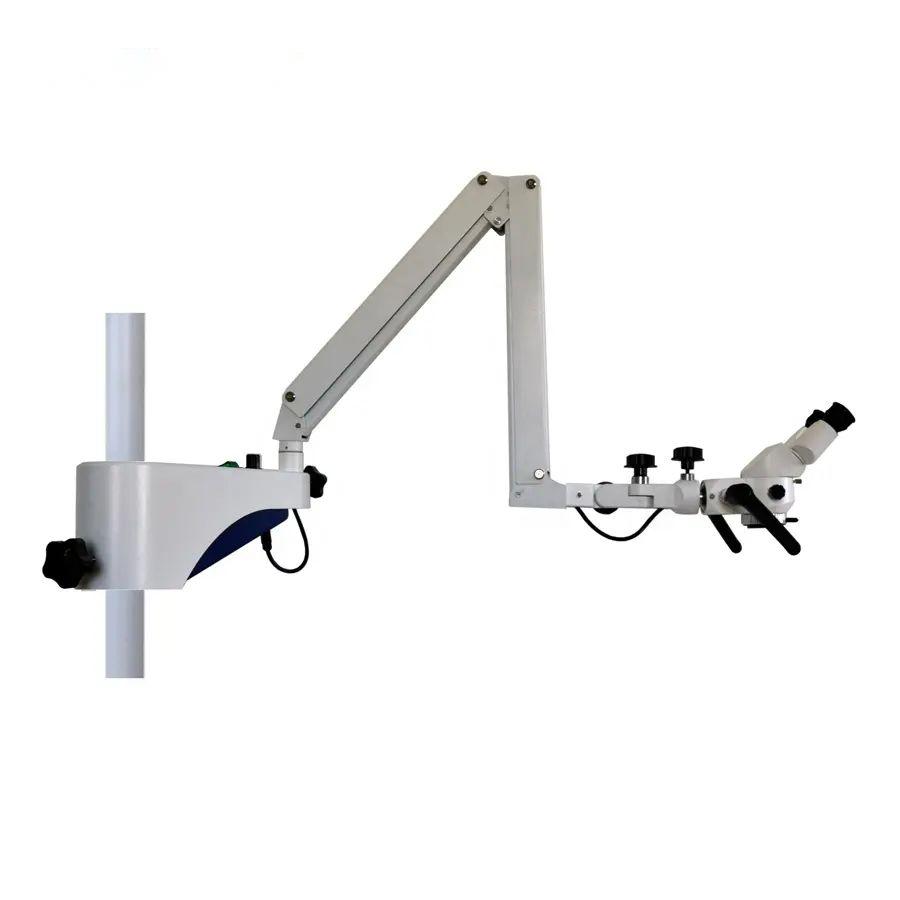

Straight Observation FD-103Z operation microscope

FD Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be used for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

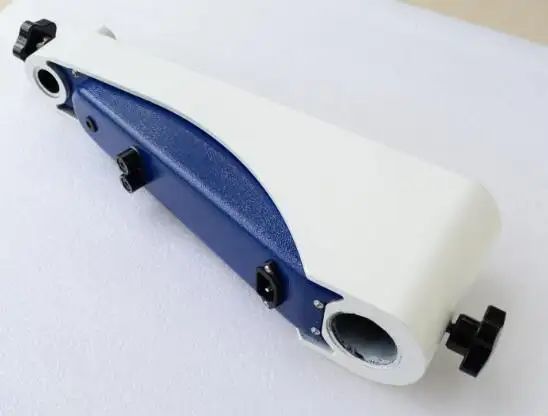

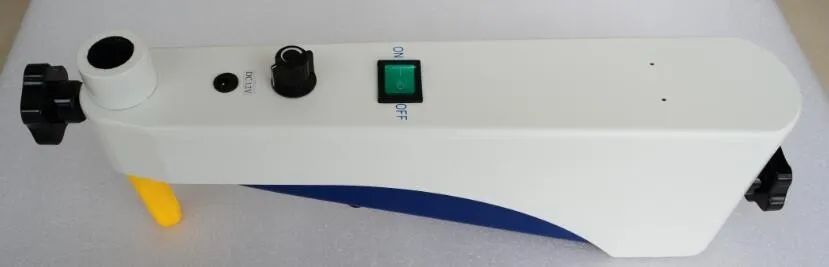

FD-103Z Operation Microscope with power supply box which can be connected to the column of ENT unit (can customize according to the column of ENT unit)


FD-103Z Operation Microscope:

Observation angle Straight
Magnification of binocular 6X
Interpupillary distance 50mm-80mm
Diopter ±5D
Focal length of objective F=200mm and F=300mm two objectives
Magnification changer 3-step: 0.6X, 1X, 1.6X
Total magnification 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine focusing distance 10mm
Illumination Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Filter Build-in green and yellow filters
Balancing arm 2-part arm with universal joints
Power supply AC100V-AC240V
