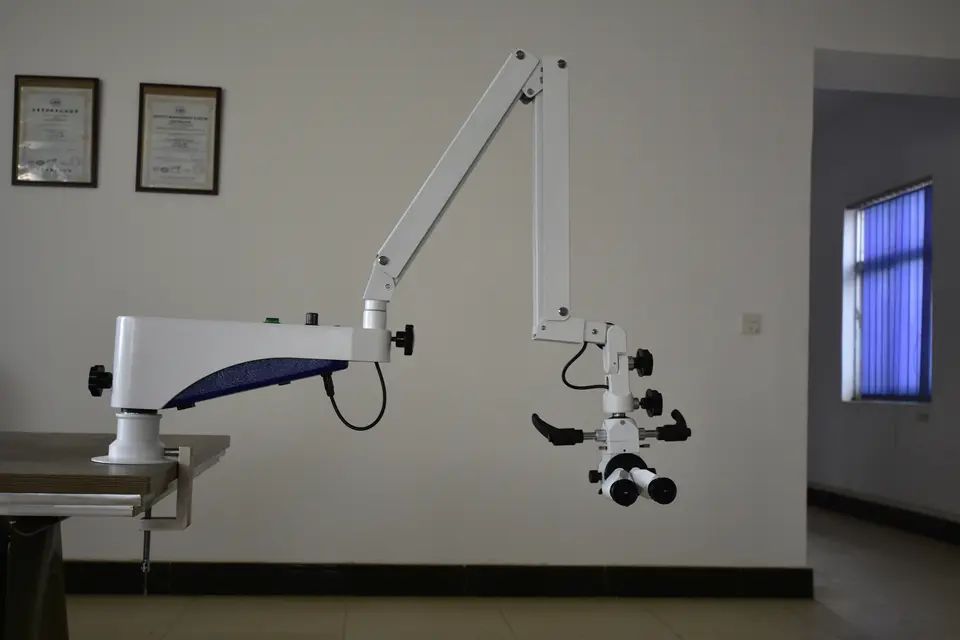

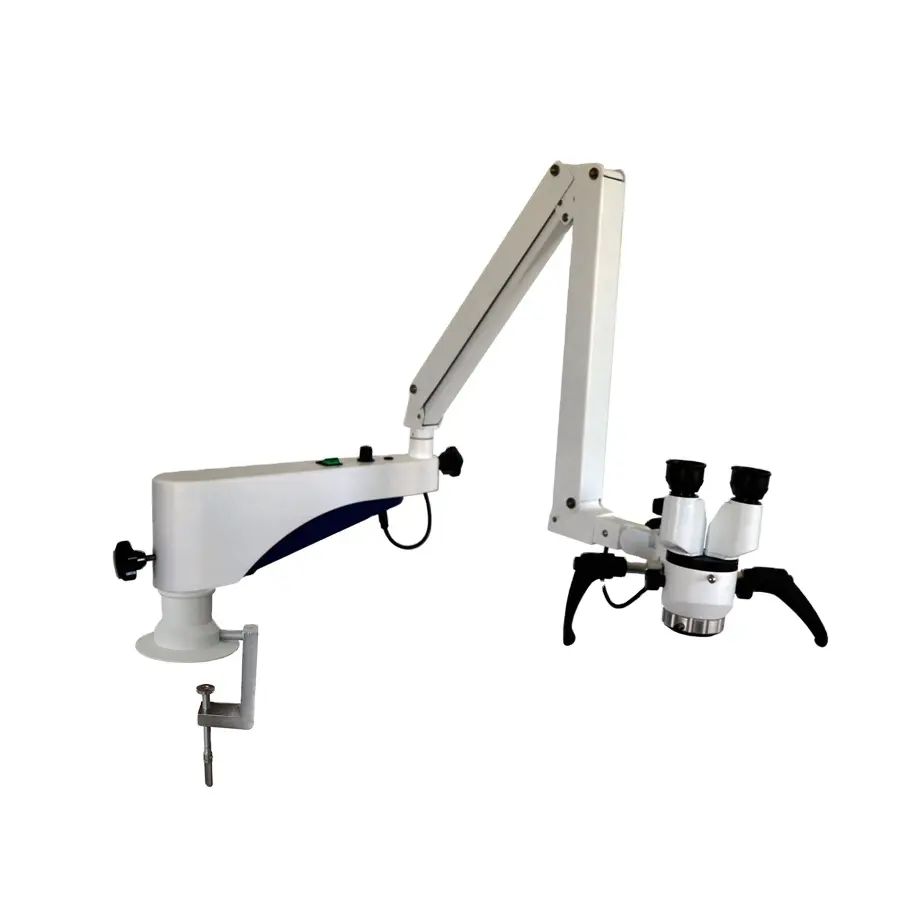

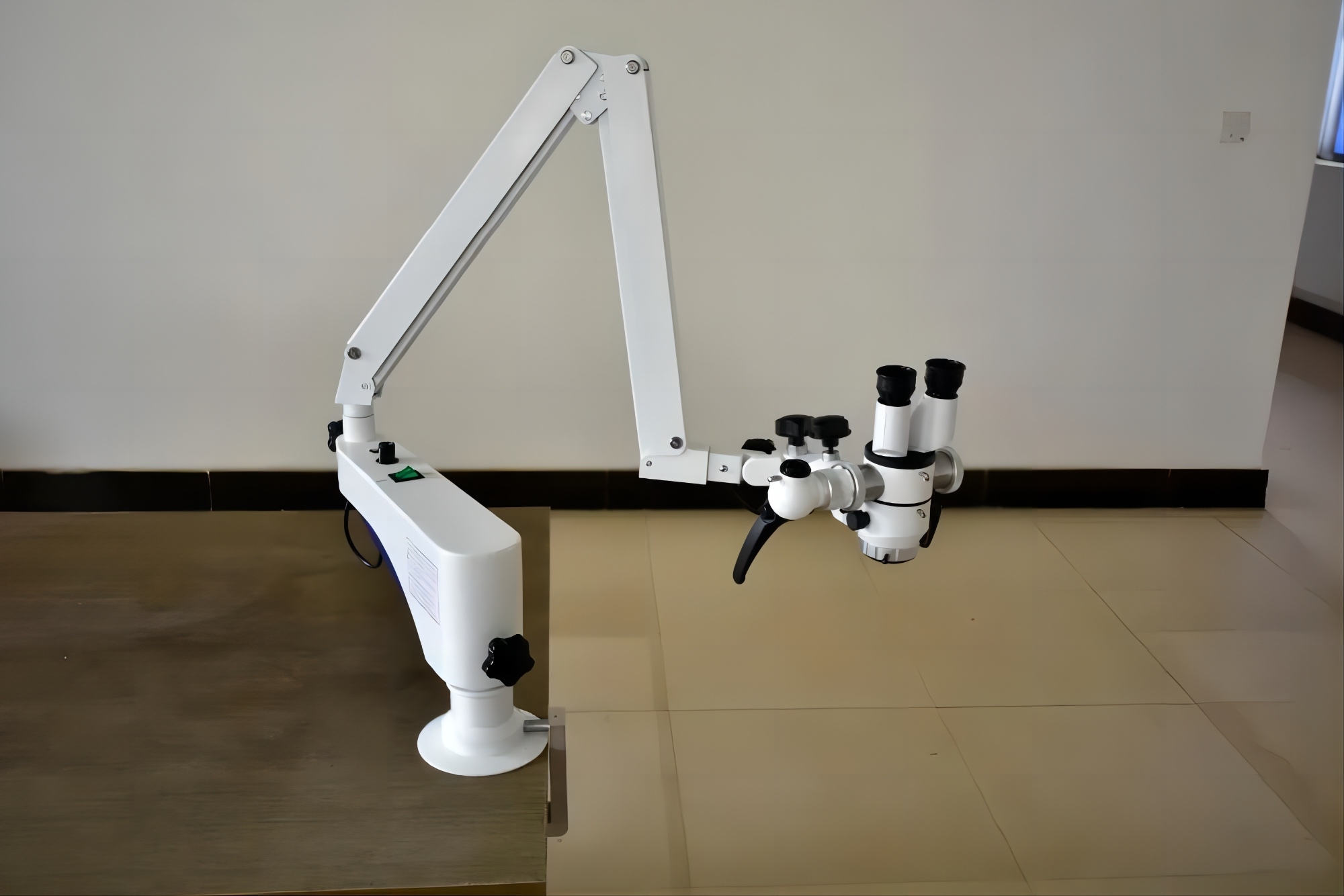

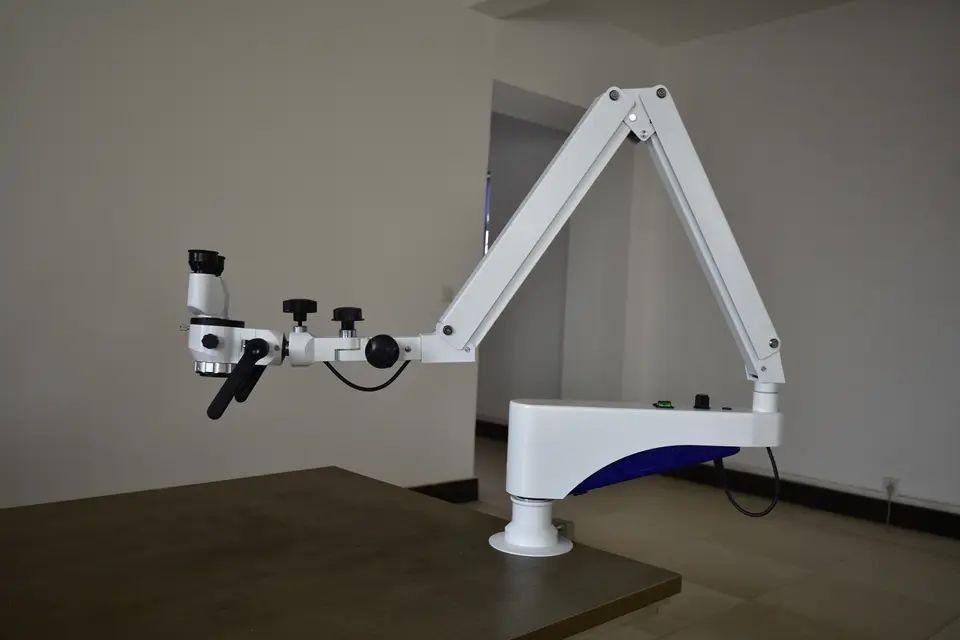

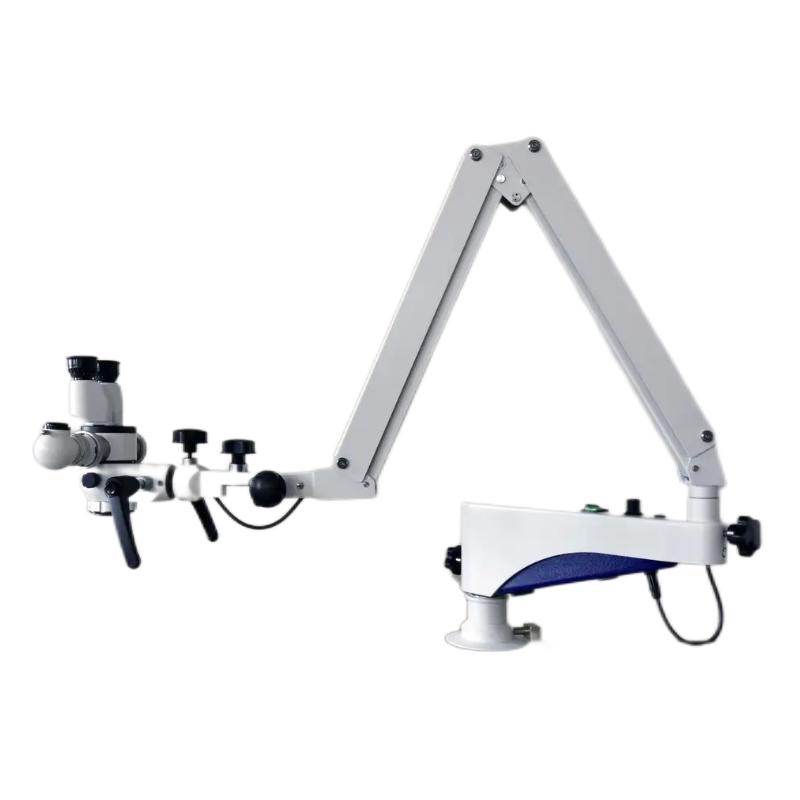

Operation Microscope FD-103 for ENT Microscope
FD-103 Operation Microscope:
| Observation angle | Straight |
| Magnification of binocular | 6X |
| Interpupillary distance | 50mm-80mm |
| Diopter | ±5D |
| Focal length of objective | F=200mm and F=300mm two objectives |
| Magnification changer | 3-step: 0.6X, 1X, 1.6X |
| Total magnification | 3X, 5X, 8X, 4.7X, 7.5X, 12X |
| Linear field | 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm |
| Fine focusing distance | 10mm |
| Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx |
| Filter | Build-in green and yellow filters |

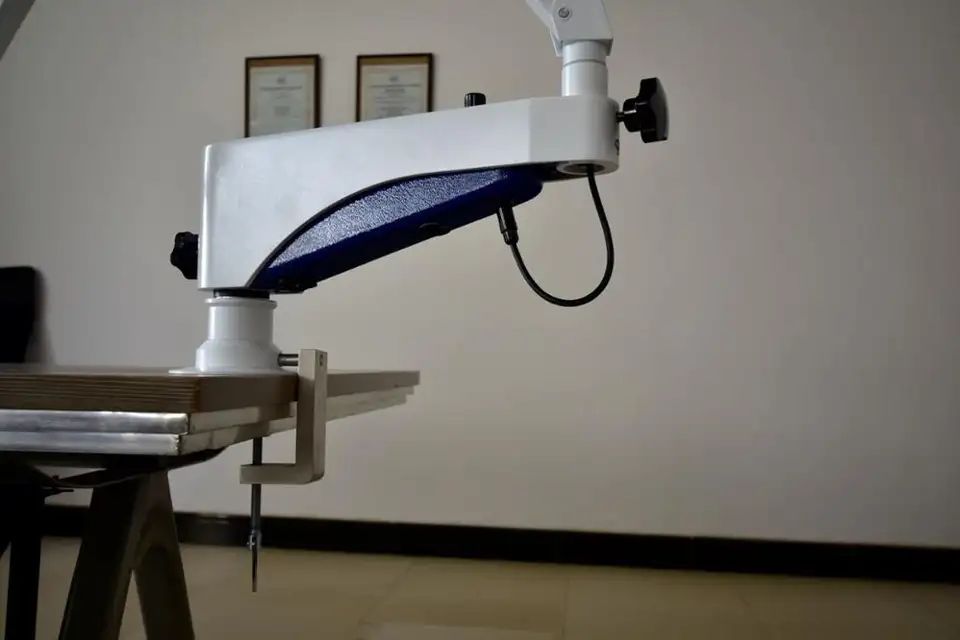

| Balancing arm | 2-part arm with universal joints |
| Power supply | AC100V-AC240V |
