Product description: Advanced Medical Equipment Anaesthesia Machine/Anesthesia
INQUIRY

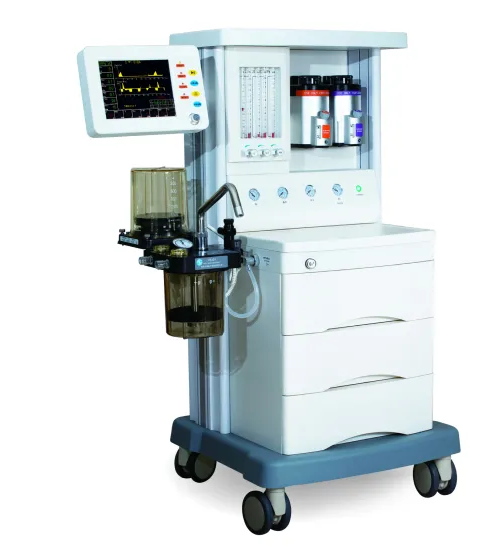

Advanced Medical Equipment Anaesthesia Machine/Anesthesia

Basic information:

•Classic electropneumatic ventilator ,widely apply for adults, children and infants;
• 10.4" or larger color LCD screen with cantilever type;

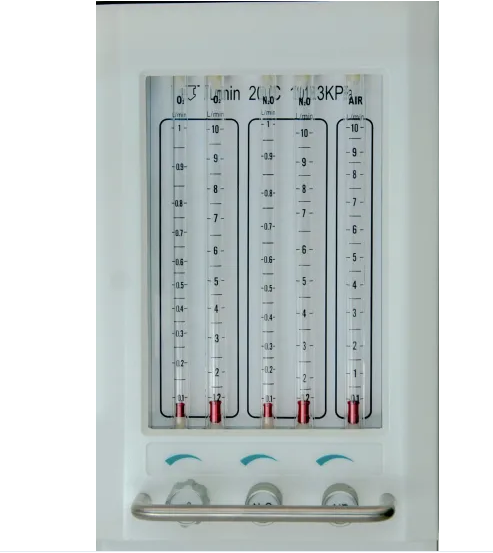

• High-precision five-tube flowmeters; nitrous oxide-oxygen anesthesia to ensure that the oxygen concentration is not less than 25%;
• With oxygen deficiency-no nitrous oxide supply function;
• For low -flow and micro-flow anesthesia need;
• Sophisticated monitoring of anesthesia respiratory parameters and alarm functions;

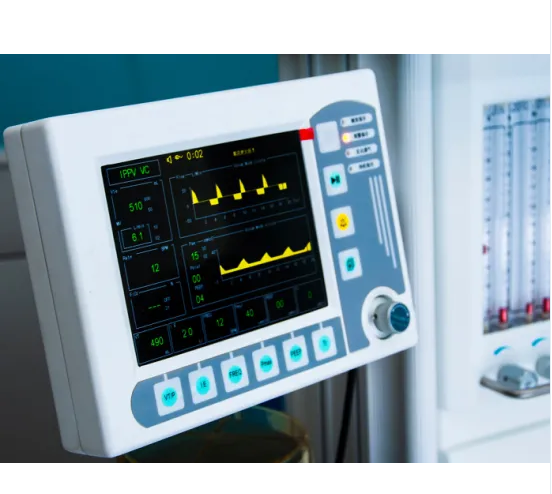

• Humanized TFT LCD interface, clearly shows the working state of the anesthesia machine, with a more comfortable operation feeling and visual sense;
•Electrical PEEP; dynamic TV compensation;
• Open software, easy to upgrade
• Advanced gas-electric isolation system eliminates the oxygen enrichment;
• With standard large-capacity maintenance-free battery, the machine can work continuously for not less than 8 hours.
• Modular design reduces potential leaks, misconnections and detachments of tube;

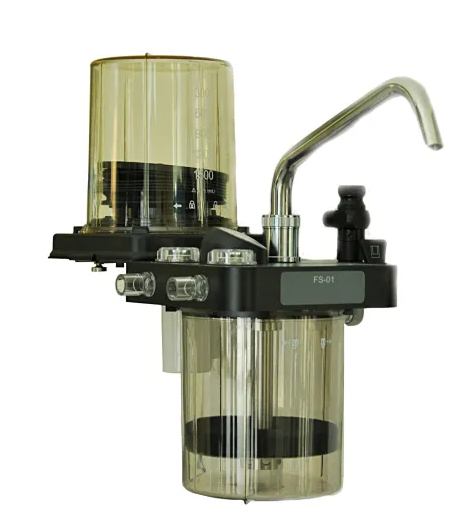

• Classic rising bellows can monitor the patient's breathing and detect leakproofness of circuit;
• Large- capacity CO2 absorption system;

• AGSS (optional) can effectively control pollution of anesthetic waste gas, clean surgical room, care for health of medical staff.

Specifications

Model	FD-A990
Display	10.4" LCD screen hanging outside
Gas Source	O2, Air , N₂O
Ventilation Mode	IPPV(VC),IPPV(PC),SIPPV(VC),SIPPV(PC),IMV(PC),IMV(VC),SIMV(PC),SIMV(PC),SIGH,PEEP,MANU, STBY
Monitoring Function	MV, VT, PEAK, Pplat, PEEP, FiO₂%, Paw[kPa], Flow[L/min], P-V, F-V
Alarm Function	Tidal volume limit alarm, minute ventilation volume limit alarm Oxygen concentration limit alarm, gas shortage alarm Battery shortage alarm, power failure alarm Continuous airway high pressure alarm
Breathing Circuit	Modular design, original anti-water technology; Large-capacity CO₂absorption tank (1.6L) ; Easy to take part
Anesthetic Evaporator	Double tank design; Temperature Compensation function; Flow compensation function ; Pressure compensation function; Precise concentration output ensures safe operation of low flow and micro flow
Precise Control	The minimum tidal volume can be low to 10ml; Adopt international top control valves, sensor components; Sophisticated information control system.
Safety Performance	Built-in high capacity maintenance free battery can ensure the machine working not less than 8 hours
Power Source	AC: 100V--240V 50H/60Hz 75VA
Optional Configuration	CO₂ module, AGSS; Anesthesia information system; Multi - parameter monitoring
