Basic information:
• Classic electropneumatic ventilator,widely apply for adults and children;• AGSS (optional) can effectively control pollution of anesthetic waste gas, clean surgical room, care for health of medical staff.
Physical&Environment Specification
Dimension(WxHxD)
970*920*1670 mm
Weight
90kg
Working temperature
+5ºC~+40ºC
Working humidity
≤80%
Storage temerature
-20ºC~+50ºC
Storage humidity
≤93%
Power supply
Main power
100-240V 50/60Hz
Battery
not less 8 hours
Outlets
4 on back, 1.5A individual
Pneunatic Specification

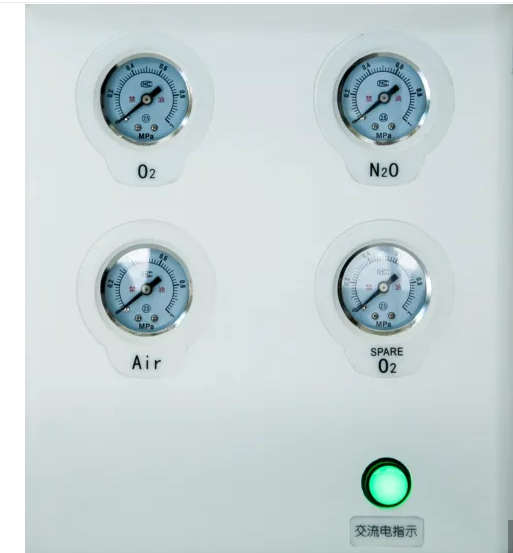

Gas supply
O2, N2O
Flowmeter: O2 range
0-1 L/min, 1-10L/min
N2O range
0-1 L/min, 1-10L/min
Air range
NO
Auxiliary O2 range
0-1 L/min, 1-10L/min
Gas system:Oxygen supply failure alarm
Yes
N2O-cut-off system
Yes
O2 flush
25-75L/min
ACGO
optional
AGSS
optional
Breathing system specification
Operation model
Closed
CO2 Absorbed container
1.6L
APL range
Adjustable
Material
ABS
CO2 bypass
Optional
Ventilator Specification
Driven mode
pneumatically driven and electronically controlled
Patient type
Adult Pediatric
Ventilator mode
IPPV(VC),IPPV(PC),SIPPV(VC),SIPPV(PC).SIGH,MANUAL STANDBY
Setting mode
Button & encoder
Tidal volume
10-1500ml
Ventilation frequency
5-100 bpm
I:E ratio
2:1-1:8
Trigger sensitivity (Pressure)
-1 ~ -9cmH2O
Compensation
Compliance and leakage compensation, fresh gas compensation, altitude compensation

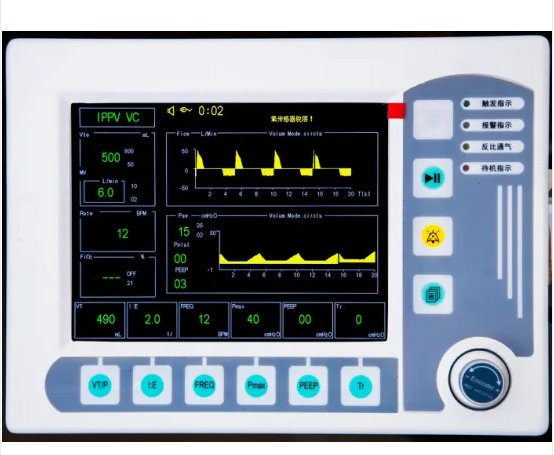

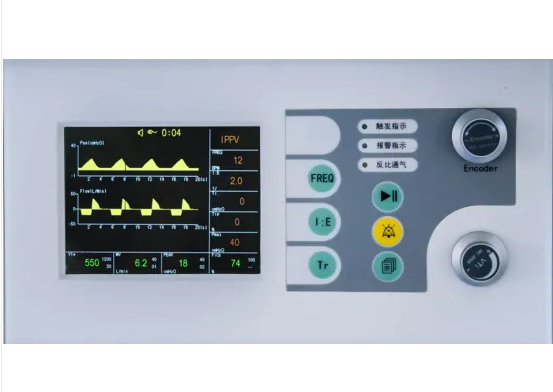

Ventilator Monitoring
Display
Digital screen
Pressure
Ppeak, Pplat, Pmean
Gas
O2 concentration, optional CO2
Graph display
NO
Alarm
High tidal volume/Low tidal volume
High minute volume
Low minute volume
Sustained high airway pressure
High FiO2%/Low FiO2%
Low gas supply
Low battery
Oxygen battery off
Power faliure
Alarm slience:110S
Vaporizer
Halothane,Enflurane,
Isoflurane,Sevoflurane

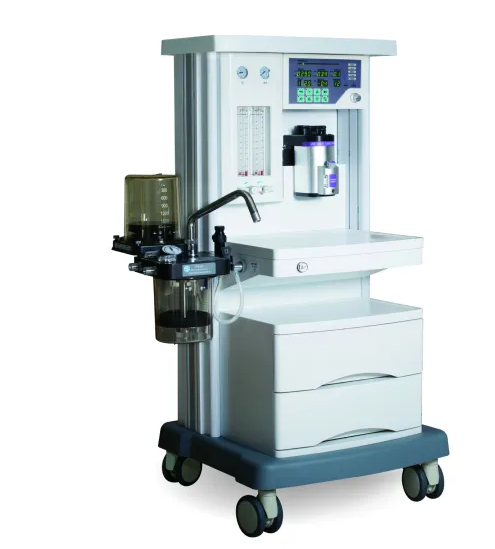

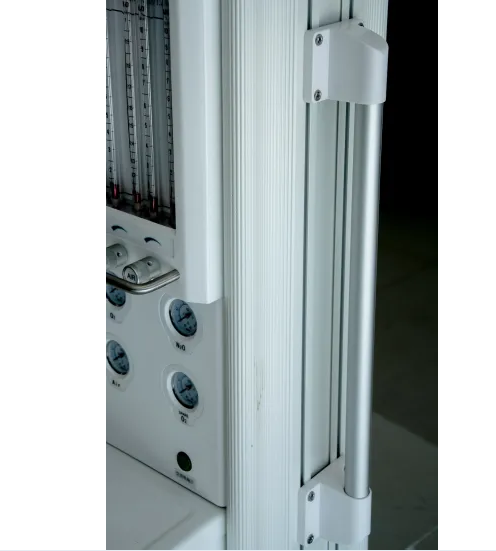

Product Pictures:
