Good Price Medical Breathing Apparatus Hospital ICU Ventilator

Specification:

Model FD8800

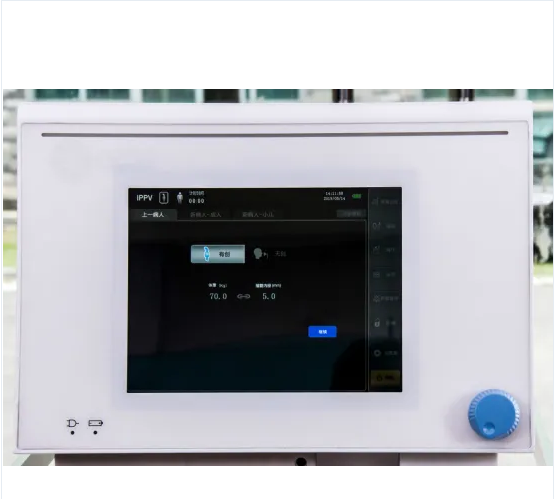

Ddiplay 10.4"LCD   screen
Ventilation Mode VCV/IPPV,PCV,SIMV,PSV,CPAP,BIPAP,SIGH,PEEP
Gas Source O2: 280Kpa-500Kpa
Air:280Kpa-500Kpa
Power Source AC:100V-240V   50/60Hz
Features
  1. Gas - Electricity separation design ensures safe operation;
  2. Wide application to adults, children;
  3. Exhalation valve can be disassembled and disinfected, which avoids cross-infection;
  4. Seamless switching of invasive and non-invasive ventilation mode;
  5. High integrated modular design of the gas circuit greatly reduces gas leakage , gas loss of system dead space and system compliance and responds rapidly;
  6. Proportional valve with high speed and high precision sends air quickly and accurately, which improves the man-machine synchronization, reduces the consumption of additional respiratory power, provides patients with comfortable excellent breathing;
  7. Intelligent identification of off tube, blocking and other conditions ensures the safety of patients;
  8. Optional: humidifier, medical air compressor.
Tidal Volume 20ml~2000ml
Volume/min ≥18 L/min
Breath Time 0.3-6s
Pressure control 1-50cmH2O
I:E 10:1-1:10
Breathing Rate 0.5-100Times/min
Inspiratory trigger mode Pressure & Flow
Inspiratory pressure trigger -20 cmH2O~0 cmH2O
Flow Trigger 0~20L/min
Maximum safe pressure <125 cmH2O
Inspiratory rise time 0.1-2.0s
Sign Pressure 0~25 cmH2O
Pressure Range 10~60 cmH2O
PEEP 0-25cmH2O
Asphyxiation backup ventilation time 10-60s
Oxygen adjusting range 21%-100%
Monitoring Function VT, MV, FREQ, FiO2%, Paw, CL , Flow[L/min], Pa[kPa],waveform





Alarm Function
  1. Upper and lower airway pressure limit alarm
  2. Gas pressure shortage alarm
  3. Upper and lower minute ventilation volume limit alarm
  4. Upper and lower tidal volume limit alarm
  5. Respiratory rate alarm
  6. Oxygen concentration alarm
  7. Low battery alarm
  8. Asphyxiation alarm
Battery

Built-in high capacity battery can ensure the machine working continuously not less than 8 hours
