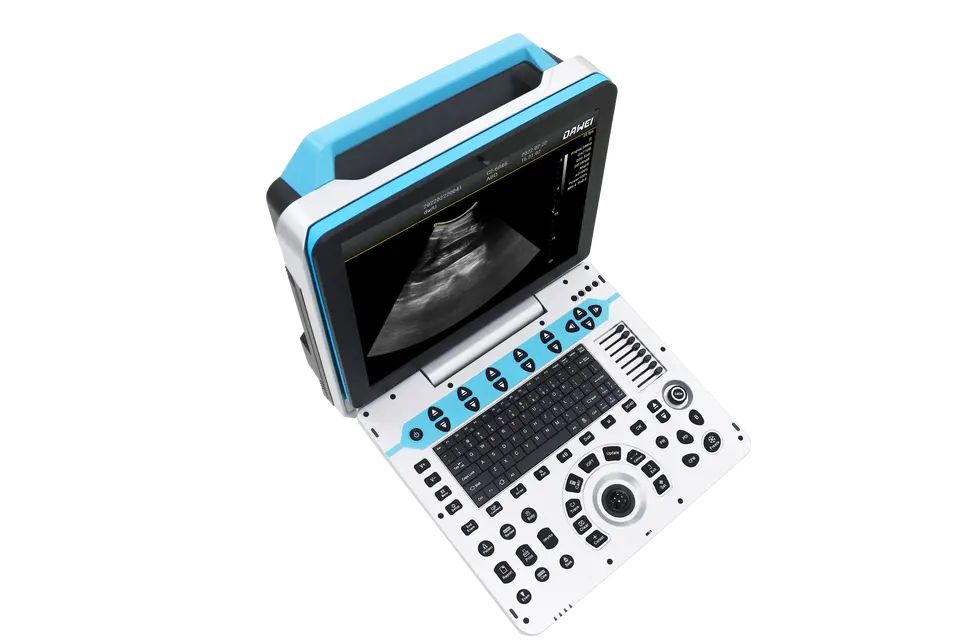

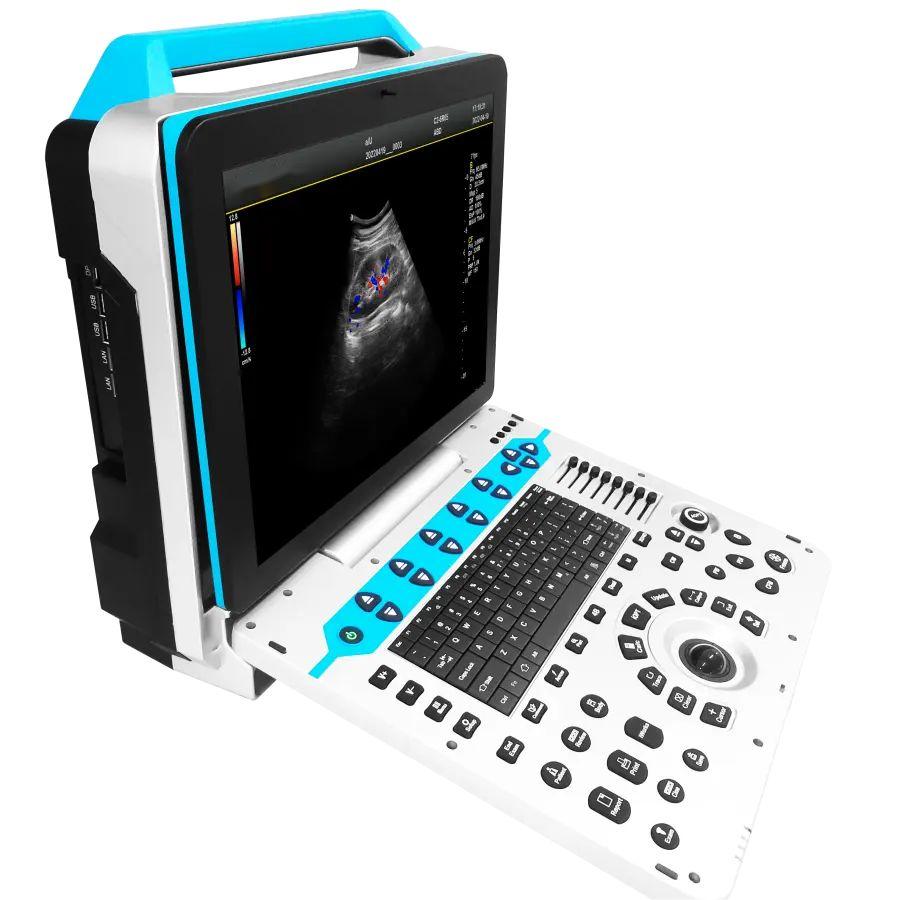

Product description: Portable Veterinary P3 Ultrasound System Ultrasound Scanner machine
INQUIRY

Portable Veterinary P3 Ultrasound System Ultrasound Scanner machine

The P3-VET has been fithully recognized in the field of portable ultrasound for its high quality

hardware and software technology and stable working system in dlinical use.

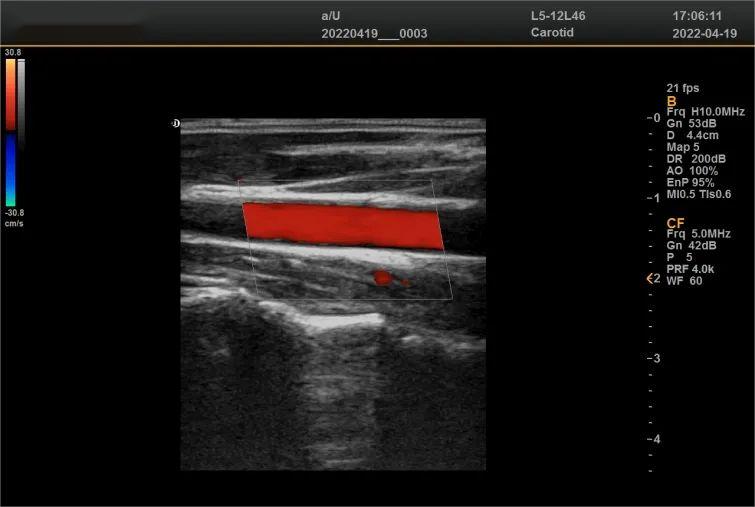

Spatial Compound Imaging

Ultrasound spatial compound imaging can improve contrast resolution, fine resolution and spatial resolution.

Enhance the echo continuity of tsse and lesion interface and reduce various artifacts (specular rflection,

speckle, scattering, attenuation, poor contrast).

Trapezoidal Imaging

It is a kind of extended imaging, based on the original rectangle converted into a trapezoid, the left and right

sides of a certain degree of expansion, the field of view to achieve a wider effect.

Harmonic Imaging

Harmonic technology maximizes the retention of the second harmonic signal on the basis of removing the

fundamental signal, which increases the signal intensity by more than 30% compared with the traditional signal

processing, reduces noise and artifacts, and improves the contrast resolution of tssue images.

Auto Spectrum Envelope Measurement

Automatic and accurate envelope spectrum, automatially gives pressure, heart rate, resistance index and other

hemodynamic indices, facilitating accurate assessment.

Item ( Ultrasound Scanner)	Details( Full Digital Ultrasound Scanner)
	Applications：	Meet the inspection and diagnosis of primary hospitals in abdomen, obstetrics, gynecology, urinary system, small organs, superficial, vascular, pediatrics, neonatal, muscle, physical examination and other aspects.

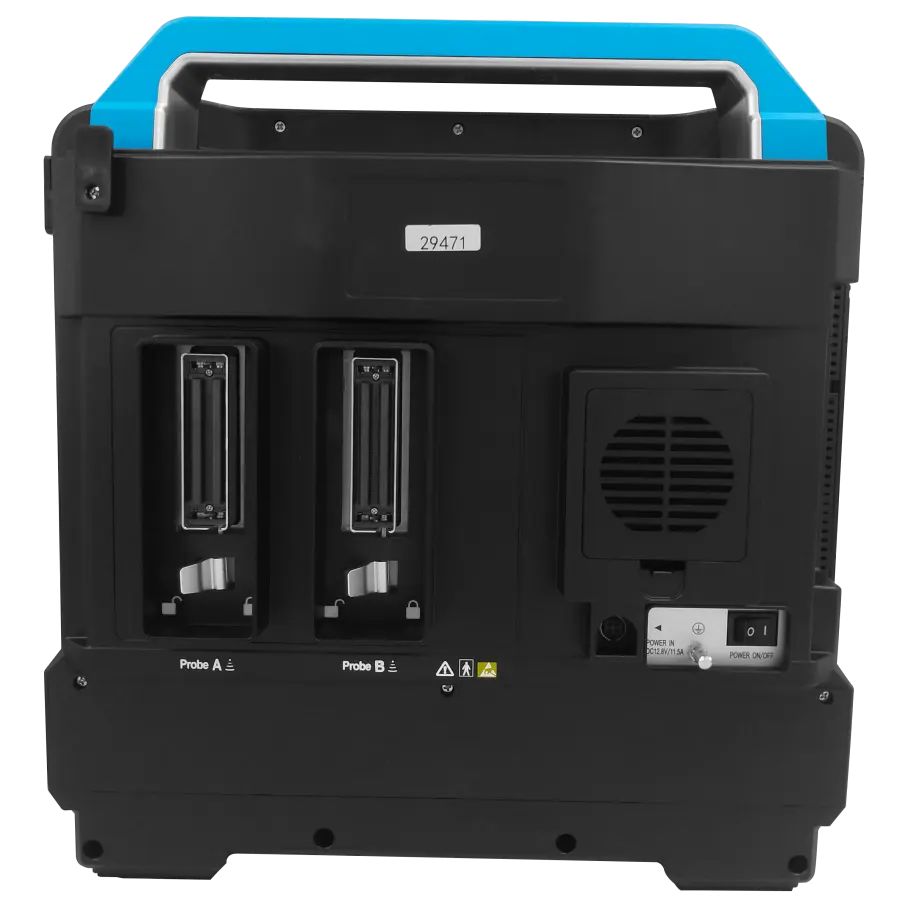

	Main specifications and system overview	1.1 Operating system: Windows 10 1.2 Spectral Pulse Doppler (PW) 3.3 Directional Energy Doppler 3.4 Real-time triple synchronization 3.5 Spatial composite imaging 3.6 Tissue harmonic imaging 3.7 2B/4B imaging mode 3.8 System language supports: Chinese, English, French, Russian and Spanish, five languages 3.9 Monitor: ≥15 inches, 0-30°adjustable 3.10 Integrated clipboard: display the saved images at the bottom of the screen, which can be directly transferred or deleted 3.11 The system has the function of field upgrade 3.12 Preset conditions: For different inspections, preset the inspection conditions to optimize the image, reduce the adjustment during operation, and commonly required external adjustment and combined adjustment 3.13 Probe interface ≥ 2 active 3.14 With trapezoidal imaging function 3.15 With one-click intelligent optimization

	Probes
	Convex probe	Frequency : 2.0MHz, 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, H4.0MHz, H5.0MHz Eight-segment frequency conversion (depth 30-255mm)
	Linear probe	Frequency: 6.0MHz, 7.5MHz, 8.5MHz, 10.0MHz, 12.0MHz, H10.0MHz Six-segment frequency conversion (depth 20-128mm)
	Trans-vaginal probe	Frequency: 4.5MHz, 5.0MHz, 6.0MHz, 6.5MHz, 7.0MHz, 9.0MHz, H8.0MHz Seven-segment frequency conversion (depth 30-156mm)
	Cardiac probe	Frequency : 2.0MHz, 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.0MHz, H3.0MHz, H4.0MHz Eight-segment frequency conversion (depth 100-244mm)
	Rectal probe	Frequency :4.0MHz, 6.5MHz, 9.0MHz, H8.0Mhz Four-segment frequency conversion (depth 20-110mm)
	Micro-convex probe	Frequency :4.5MHz, 5.0MHz, 6.0MHz, 6.5MHz, 7.0MHz, 9.0MHz, H8.0Mhz Seven-segment frequency conversion (depth 30-111mm)
