Ultrasound machine

  • 4D Trolley Ultrasound Machine

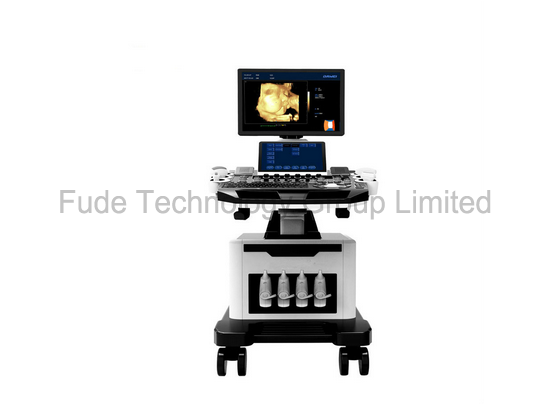

4D Trolley Ultrasound Machine

4D Trolley Ultrasound Machine

  • Ultrasound Machine
  • Ultrasound
  • Ultrasound Scanner
  • Trolley Ultrasound
  • Product description: Hot Sale and Best Seller 4D Trolley Ultrasound Machine Economic/Ecografo Ultrasonido 4D
  • INQUIRY

Hot Sale And Best Seller 4D Trolley Ultrasound Machine economic/ecografo ultrasonido 4d

Product Specification:

Item
Details


Multi-beam parallel processing
After emitting one wave, it receives echo signals from different directions, improving image's time resolution and decreasing noise of frame frequency.

Intelligent speckle reduction
Automatically recognize and enhance effective tissue information of echo's signal, in order to decrease and eliminate noise, improve signal noise ratio and make images clearer.

THI
Adopting echo wave's tissue harmonic imaging, to reduce the overlap structure and side valve's distortion, improve space resolution and contrast resolution.

Item
Details


Composite gain
Application of TGC and D-AGG, to keep the undistorted echo signals, and realize high signal noise ratio. Application of TGC gain, to linearly amplify the inputting signal's strength so that to improve the outputting signal noise ratio and dynamically adjust TGC to the best values.

Professional measurement software packages
Obstetric measurement
Andrology measurement
Gynecological measurement
Urology measurement
Peripheral vascular measurement
Multiple births measurement
Small organ measurement
Orthopedic measurement
Cardiac measurement

Image processing
Dynamic range conversion and logarithmic compression
Temporal filtering
Spatial filtering
Frame averaging
Edge enhancement
Grayscale conversion
B | M type or M-type scanning speed
Line density control
Scanning angle / width control
Image optimization
Image upside down
Multi-angle image rotation
Color bars grayscale inversion selection
Tissue and blood flow image composite image processing
Monochrome image resolution 1024 × 768 × 8bit (256 gray levels)
Color image resolution 1024 × 768 8bit × 8bit × 8bit color coding

Item
Details


Operating Mode
B, 2B, 4B, B/M, M, B/C/D, B/D, CW, PW, velocity, power(direction), histogram, triples/duplex etc.

Standard Configuration
Main Unit
3.5Mhz convex probe
4D Volume probe and software

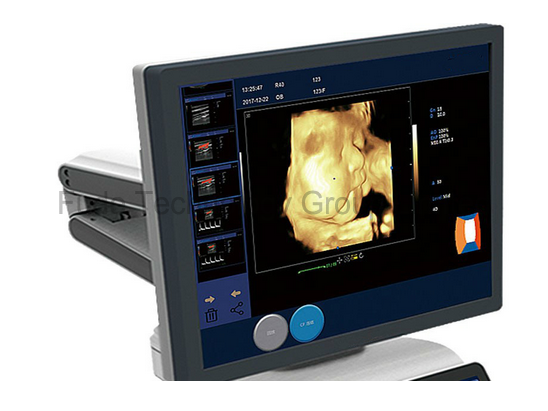

19'LED display with 10.4' touch screen
CW function ( work with phased array probe)
USB ports,DICOM 3.0,DVD-RW


Optional Configuration
6.5Mhz R10 trans-vaginal probe
7.5Mhz linear probe
2.5Mhz phased array probe
Elastography
Any Printer
