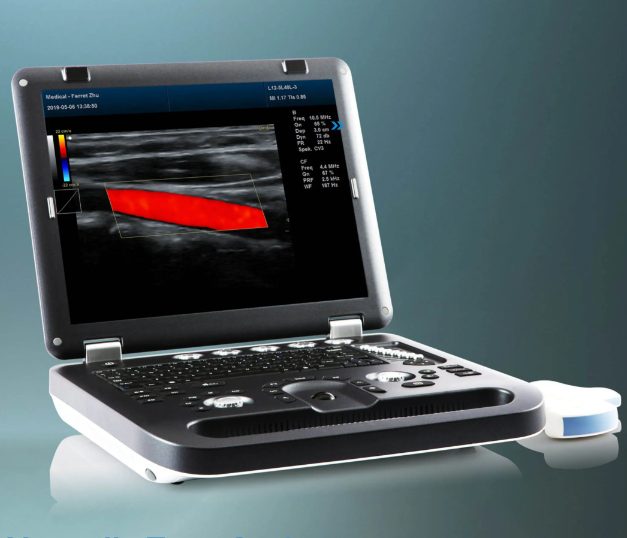

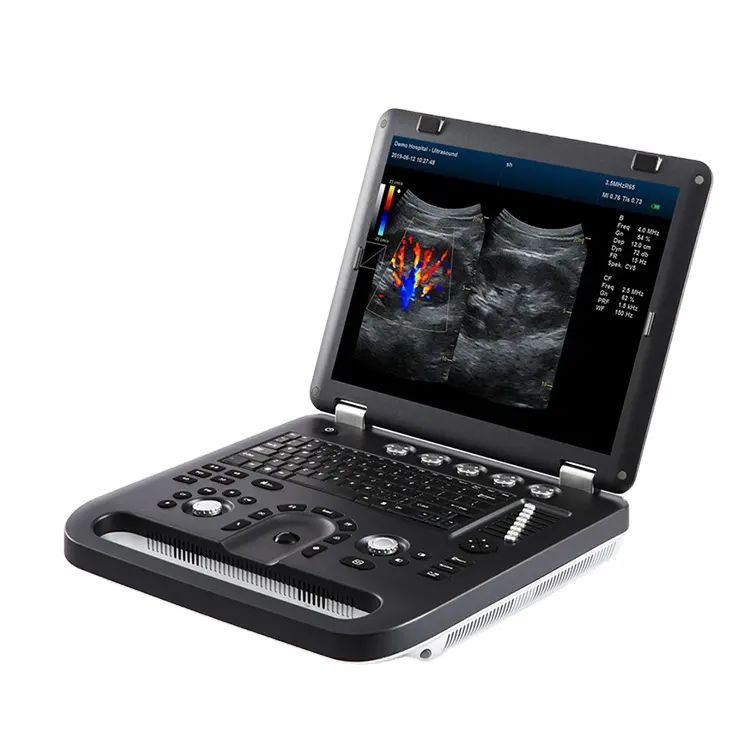

Laptop Color Doppler ultrasound Scanner M60 ultrasound

Adopting virtual lighting technology, it establishes one spot light for 3D/4D imaging. Then it adjusts the lighting angle with real time 3D reconstruction by GPU, results in imaging more lively.

Product Name
Laptop Color Doppler
Size
350*365*83mm
Colour
Black-Silver Grey
Product Features
Laptop
Craft
Ultrasound
Material
Metal, Plastic
Specification
- Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc.
-Displaying mode
B, 2B, 4B, left & right B|M, B|D, CW(optional) , M, PW, CFM, Triplex, PDI, DPDI, B+PW, B+CFM+PW, B+PDI+PW, B+DPDI+PW, Anatomic M(optional),color M
-Image processing
THI,ITHI,HPRF, trapezoid Imaging, spatial compound imaging, convex extended imaging ,linear trapezoid imaging, speckle-reduction, B-steer, frame averaging, wall filter, 256 grey scale, scanning angle/width control
-General measurement
B mode: Stenosis, distance, angle, circumference and area, volume, ratio, histogram M mode: Stenosis , heart rate, time, distance, velocity PW: velocity, PI&RI, time, distance, ratio, S/D, D/S, pressure gradient, heart rate
-Measurement & report packages
Abdomen, OB,GYN, cardiac, vascular, urology ,musculoskeletal, small parts and etc.
-File management
Recall exam history, patient file management, report edit and export management
-Cine loop
Operated by automatically and manually, speed optional, cine loop achieve, forward/ backward cine loop
- Input/output interface
VGA, S-video, USB, Video
-Standard configuration
Main unit, 3.5MHz convex probe, 15" LCD monitor, 1 probe connector, 2 USB ports, battery
-Options

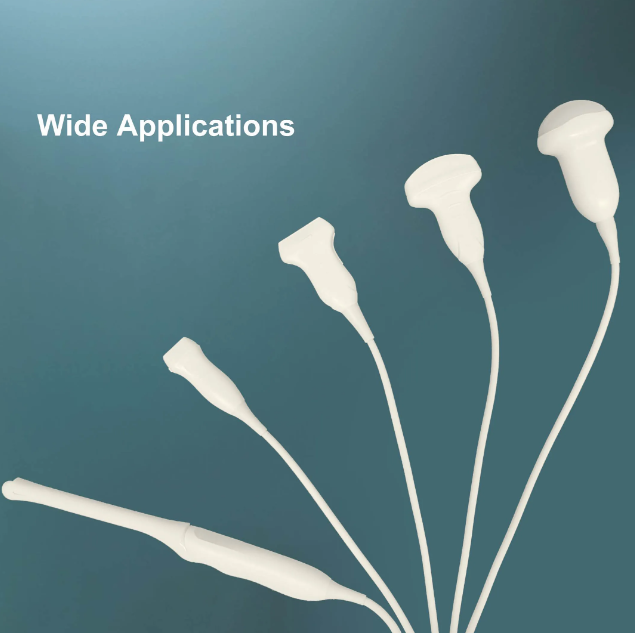

7.5MHz linear probe, 6.5MHz transvaginal probe, 3.0MHz phased array probe, 4.0 MHz volume probe, DICOM3.0, video printer, laser/inkjet printer, trolley
