Medical Microscope zoom stereo eye surgical FD-500-3A microscope

Medical Microscope zoom stereo eye surgical microscope

Model	FD-500-3A
Function	ophthalmology

Electrical data
Power socket	220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ
Power consumption	40VA
Safety class	class I

Microscope

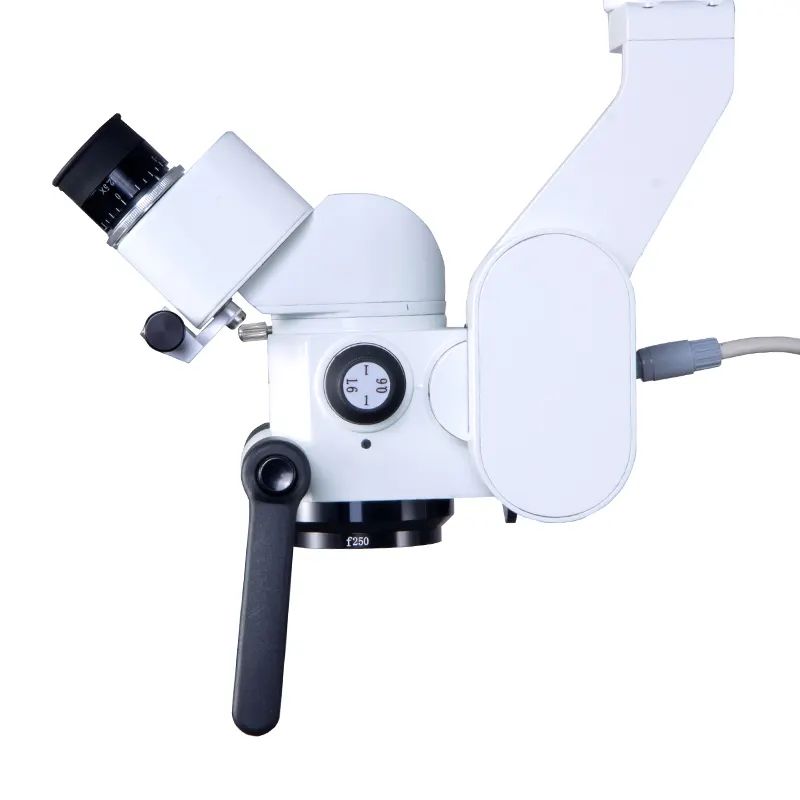

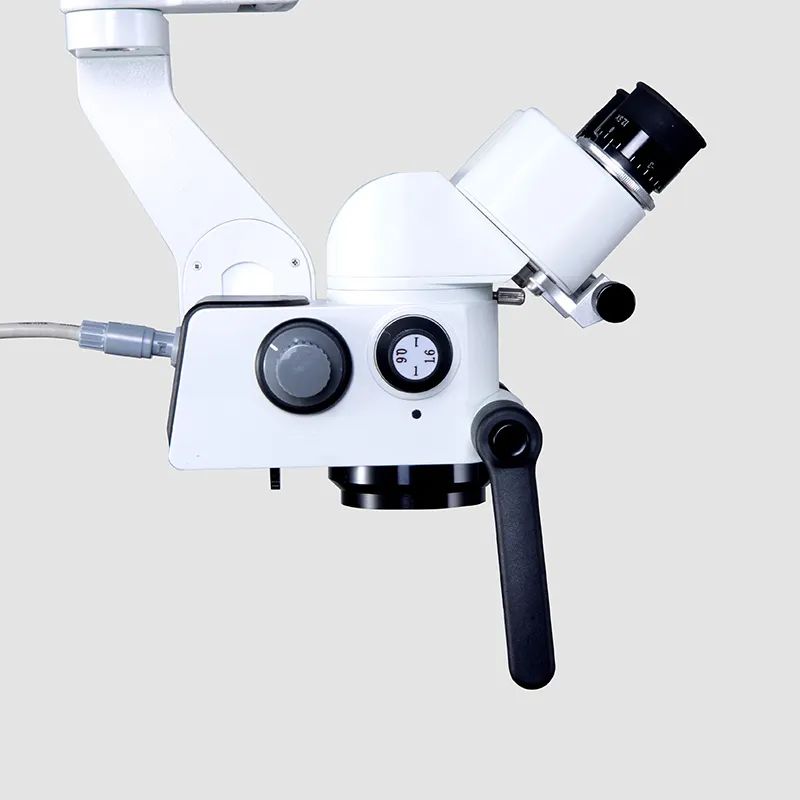

Magnification	manual 3-step changer, ratio 0.6,1.0,1.6 , total magnification 6,x 10x,16x ( F 200mm),
Focusing range	50mm
Binocular tube	45° tube
Eyepiece	12.5x / 10x
Stereo base	22mm
Objectives	F=200mm
Pupil distance	55mm~75mm
diopter adjustment	+6D ~ -6D
Light source	LED cold light
Built-in filter	Red free filter, small spot, Macular protecter
Light intensity adjustment	Using a drive knob on the optics carrier

Stands
Max extension range	1193mm
Base	610 × 610 mm
Transportation height	1476 mm
Balancing range	Min 4 kg to max 7.7 kg load on the optics carrier
Brake system	Fine adjustable mechanical brakes for all rotation axes with detachable brake
System weight	68 kg

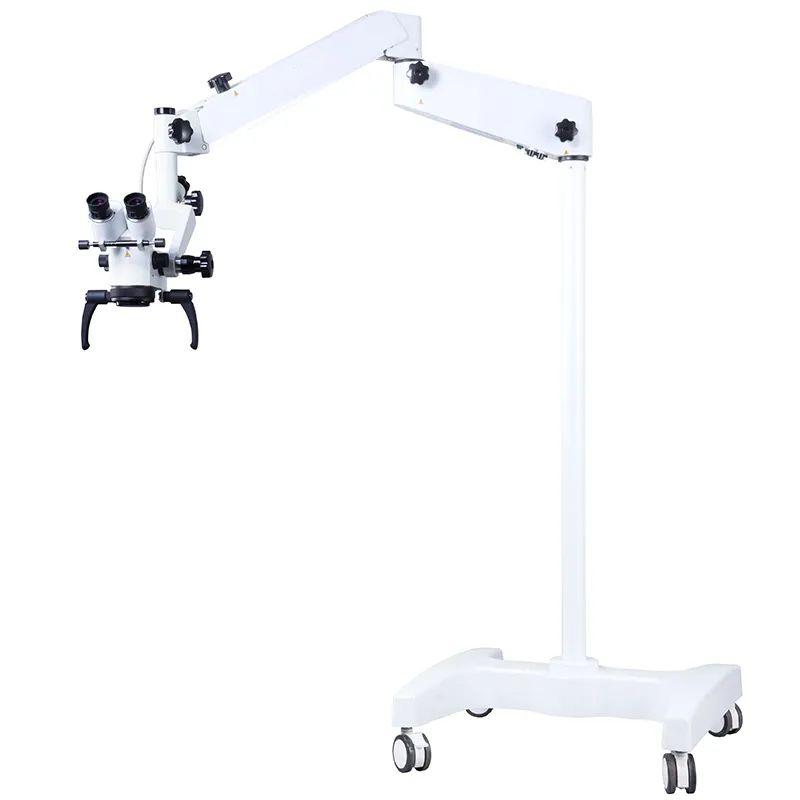

Stand options	Ceiling mount,Wall mount,Floor plate,Floor stand

Accessories
Binocular tube	Selection of fixed and variable observation angle

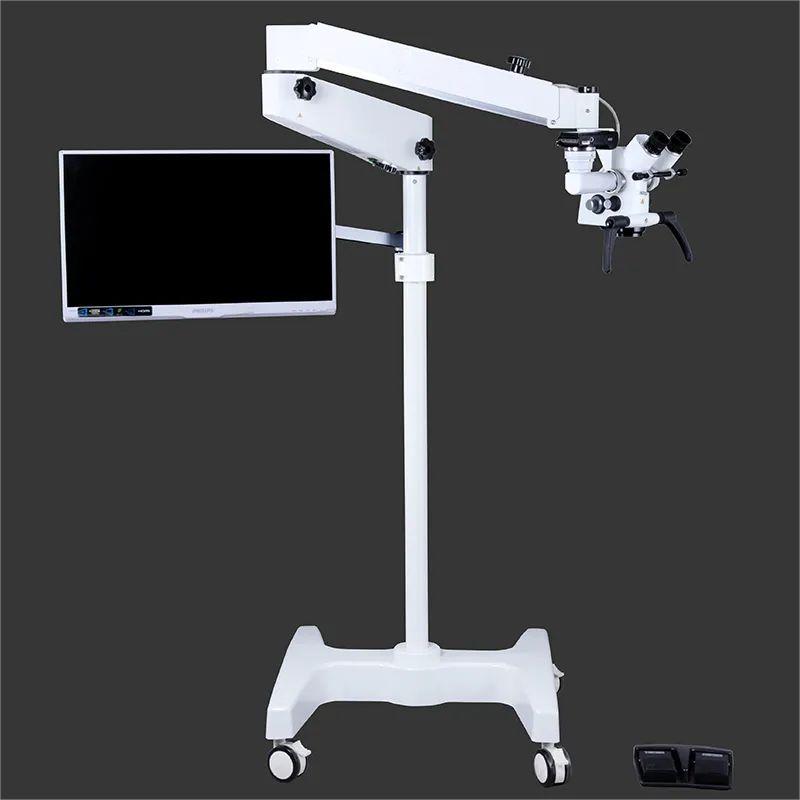

CCD Camera system	Beam splitter, CCD adapter, CCD, Display

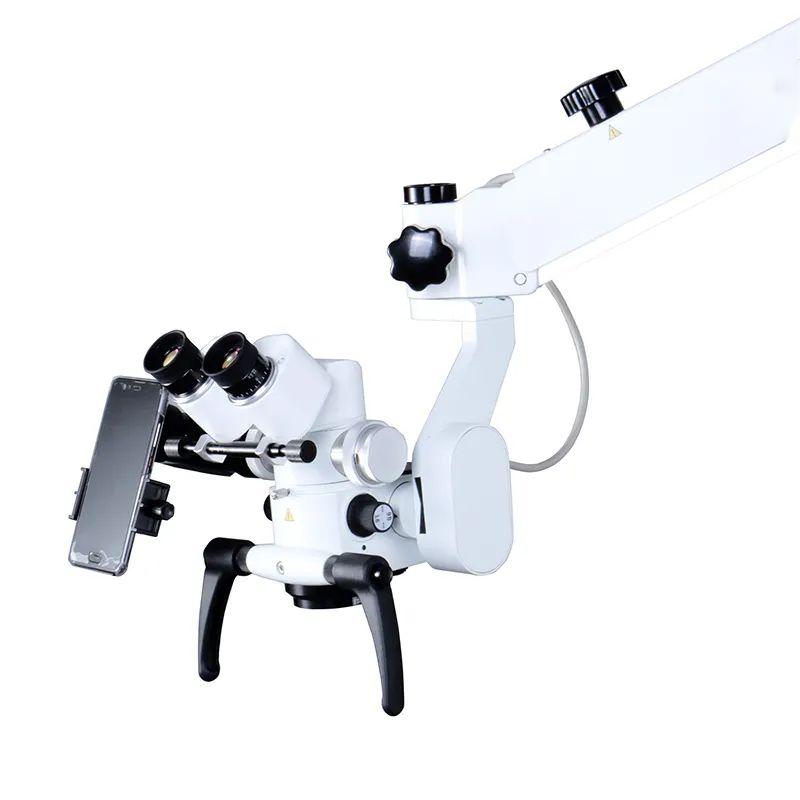

Mobile phone adapter	Compatible with all models
Integrated Video Adapter	SONY / CANON Camera

Ambient conditions
Use	+10°C to +40°C
	30% to 75% relative humidity
	500 mbar to 1060 mbar atmospheric pressure
Storage	–30°C to +70°C
	10% to 100% relative humidity
	500 mbar to 1060 mbar atmospheric pressure
