Product description: Medical 3.5 Inch Electrocardiograph Portable ECG Machine
INQUIRY

Medical 3.5 inch electrocardiograph portable ECG machine

Function Features of ECG Machine

Full screen display of 12 channel ECG waveforms

3.5 inch wide-screen

Digital single channel automatic measurement, analysis and diagnosis with report printing

Multiple operation modes: manual, automatic, rhythm, physical examination

No need to install. Best choice for first aid and shift

Light-weight,exquisite and easy to carry

Built-in rechargeable li-ion battery, 8-hour battery life

Standard configuration:
ECG8201 Electrocardiograph mainframe
ECG suction bulb - one pair
12-channel ECG lead
AC adaptor
Grounding wire
Body/limb clamp - one set
Power line
Thermal print paper- two rolls
Print paper scroll
Operation manual

Parameters of ECG Machine
Operation mode:Manual/Auto/storage
Standard 12 leads:real-time ECG waveforms
Measure mode:Simultaneously acquisition of 12 lead,
Measure frequency:12Bit/1000Hz(1ms)
AC filter:50Hz/60Hz
EMG filter:25Hz/45Hz
Drift filter:Auto adaption
CMRR:≥95dB
Input circuit:Floating with defibrillation protection
Frequent response:0.05-160Hz(-3db)
Sensitivity:Auto/2.5/5/10/20/40(mm/mv)
Printing:High resolution thermal printer
Communication interface:Standard USB/RS232
Safety standard:IEC I CF(GB9706.1-2007)
Keypad panel:can input clinic information such as patient names
Display:320*240 Graphical LCD
Internal power supply:built-in rechargeable li-ion battery for 8-hour battery life
External power supply:AC 75V-265V Auto adjustment for wide input range

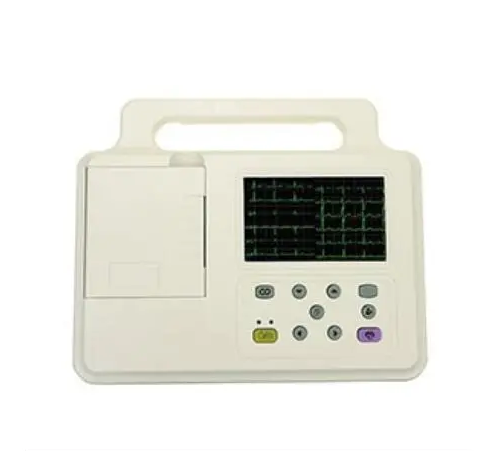

Product Pictures:
