China factory cheap medical hospital ecg machine/12 Channels Electrocardiograph

Function Features of ECG Machine
  • Modern in design, light in weight, compact in size.
  • Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
  • 10.2'' color touch-screen, both push-button and touch operation.
  • Sensitive filters of ADS, HUM, and EMG.
  • Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor's burden and improve working efficiency.
  • Automatic adjustment of baseline for optimal recording.
  • Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
  • Lead off & lack off paper detection function.
  • Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.
  • Adapt to 100-240V, 50/60Hz AC power supply
  • Historical data and patient's information can be reviewed and printed.
  • Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
  • The machine can store over 500 ECG reports in its built-in flash.
  • Standard RS232 and USB communication interfaces.
  • Connect with PC via ECG workstation software.
  • Sleep mode to save energy and extend LCD life
  • The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
  • Portable design with hidden handle, convenient to carry.
  • 7 level printing thick can be chosen.

Parameters of ECG Machine

CMRR ≥ 100dB, with AC Filter Calibrating voltage 1mV± 3%
Input circuit Floating Voltage tolerance ± 500mV
Input circuit current ≤ 0.1µ A Time constant > 3.2s
Resolution 12bit/1000Hz Frequent response 0.05Hz~150Hz
Operation mode Manual/Auto Noise level ≤ 15µ Vp-p
Filter AC. EMG Filter Threshold ≤ 20µ V
Drift filter Anti-Drift System Paper speed 12.5, 25, 50mm/s (± 3%)
Input Impedance > 50MΩ Sensitivity 5,10,20mm/mV
Patient current leakage < 10µ A Recorder High resolution thermal printer
Specification of fuse T1.6A 250V Ø5×20 Battery Built-in rechargeable Li-ion battery 14.8V(4000mAh)
Recording paper Thermal recording paper Package 365mm×306mm×109mm

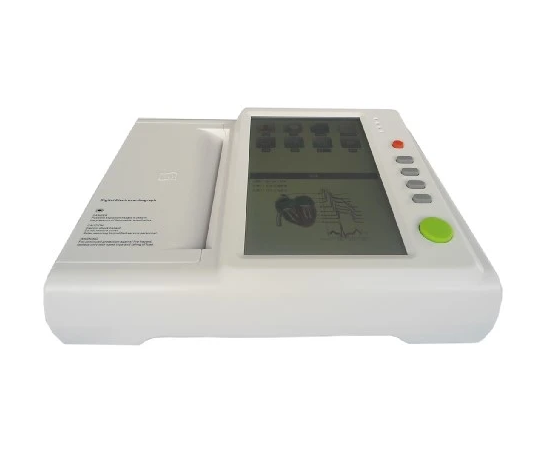

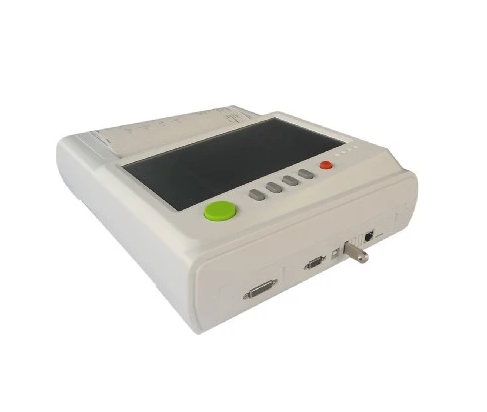

Product Pictures:
