FD-600 1 CCD  camera

Product Name 1CCD Endoscope Camera Model FD-600
Specifications and Parameters Description
CCD Resolution 752(H)*582(V) Functions and Features
Horizontal Resolution 480lines at center

Waterproof                                                                                                                                                Outstanding waterproof performance Operation                                                                                                                                                    LCD display of setup menu: Camera                                                                                                                 Head with Image Freeze and AWC functions Applicability                                                                                                                                          Applicable to all kinds of endoscopies

Humanized Design:                                                      Creative idea of one control unit with three camera heads;                                                                               Comfortable design of camera head frees user from tiredness;                                                                        Easy-operating with Image Freeze and AWC functions on Camera head

Output 2*Composite video output,1* S-Video output
Light Sensitivity 3 lux at F1.4
Signal/Noise Ratio >50dB
Auto White Balance Remote control
Manual White Balance Red & blue adjustable
Temperature Range +5 ~ +45
Humidity Range 30% ~ 85%
Capacity 15W
Power AC 100-240V, Fuse 2*2A
Dimensions 585*440*180mm
Gross Weight 7.2kg

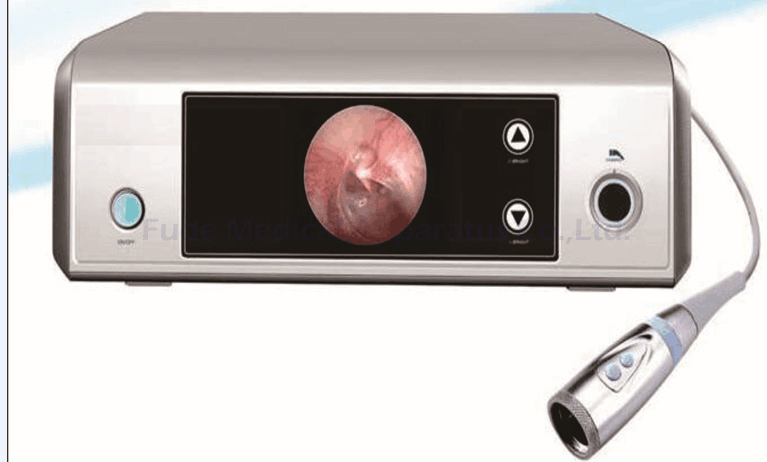

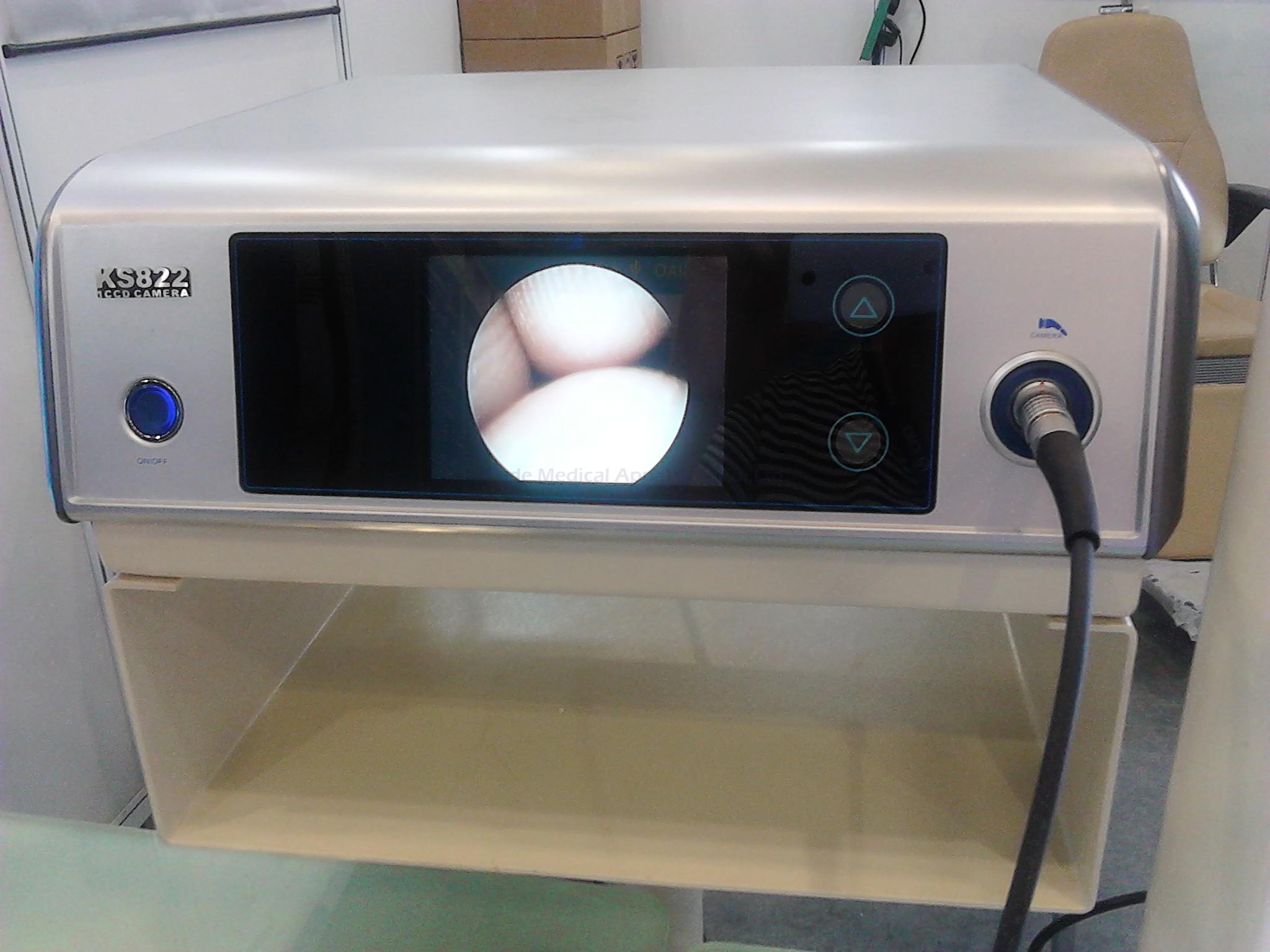

Product Picture:
