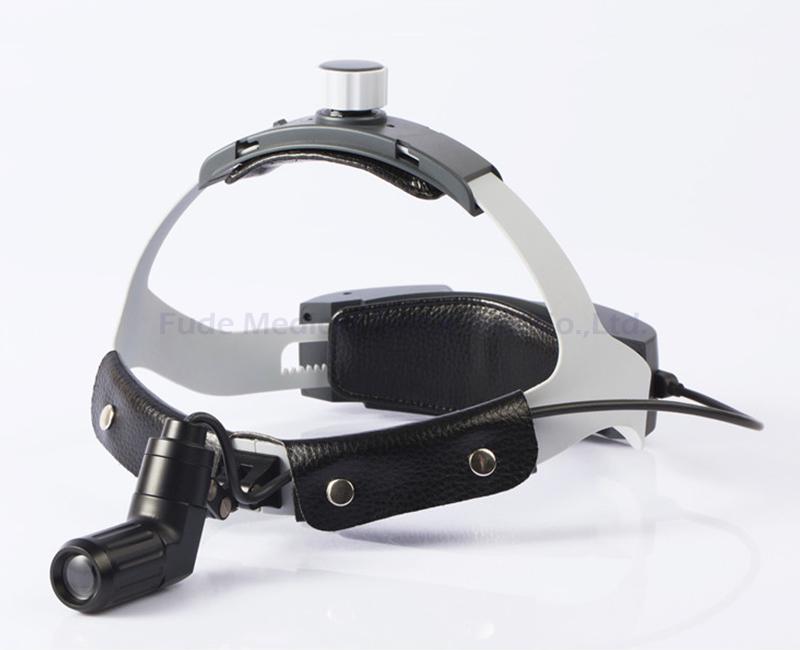

FD-B9 LED Operating headlight

Content

Specifications

Lamp

3 W, Cree LED, Life-span 50000hrs

Adjustable brightness

6 Levels

Illumination

＞22000Lux （at the working distance of 200mm）

Illumination Uniformity

Variation less than 10% throughout area

Color temperature

＞6000K

Light Spot size range

30mm-80mm（at the working distance of 300mm）

Power type

DC

TSB2 Standard Battery

DC4.2V/1250mAh

Working time: ＞4-8hrs（depends on different brightest level）

Charging time: 2~3hrs

Charger for

TSB1 Standard Battery

Input：AC100-240V 50/60Hz

Out put：DC4.2V 800mA

TLB1 Large Capacity battery

(purchase separately)

DC8.4V/3000mAh

Working time:＞6-20hrs（depends on different brightest level）

Charging time: 3~4 hrs

Charger for

TLB1 Large capacity battery

(purchase separately)

Input：AC100-240V 50/60Hz

Out put：DC8.4V 800mA

TD-I headlight weight

254g（without battery）

TSB1 Standard Battery weight

130g

TLB1 Large capacity battery

186g

Standard package include

1 Headlight (including TSB1 Standard Battery),

1 Charger; 1 Aluminum case

Purchase separately

Loupe; TLB1 Large Capacity Battery, TLB1 Battery cable

Sterilization

Non-waterproof
