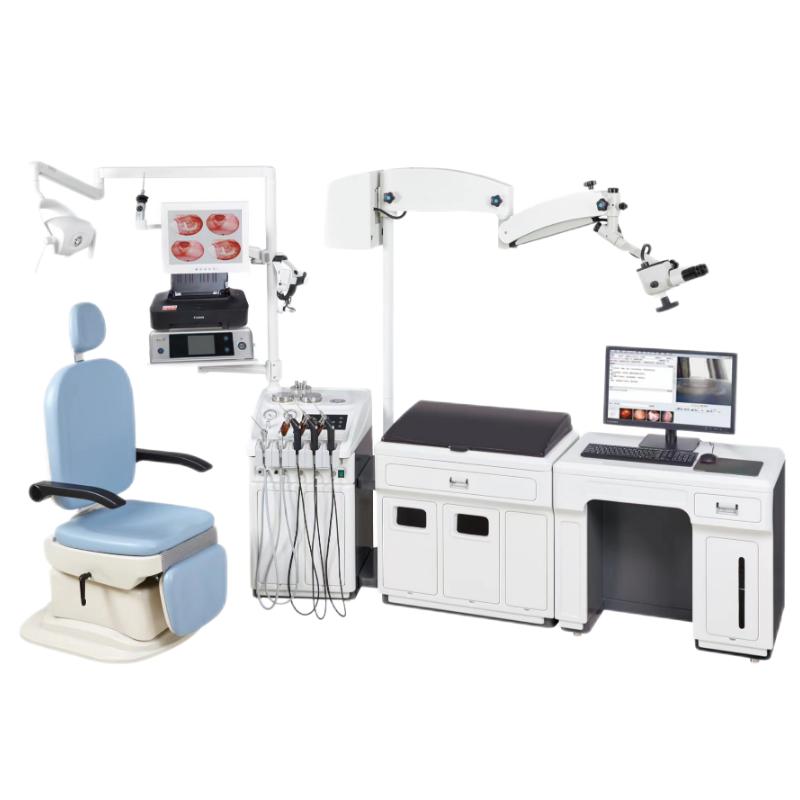

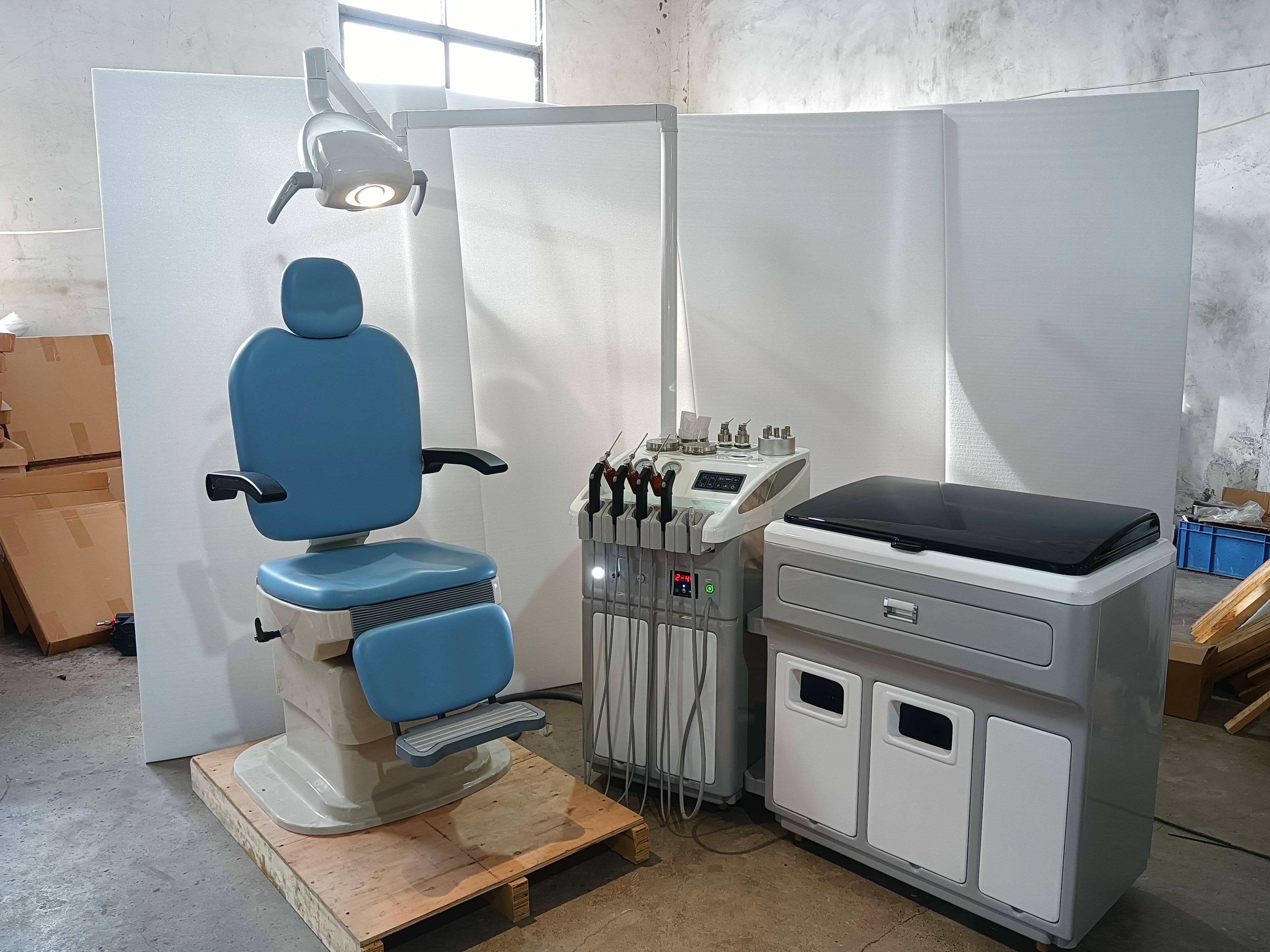

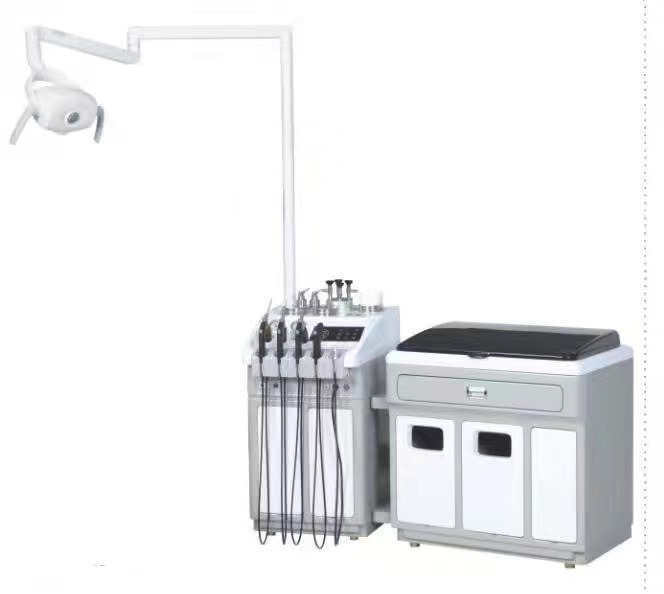

PIONEER ENT Treatment Unit for clinic

Picture:


Product Description


Pioneer ENT Unit is constitute of operation table and writing table. The main frame is made of dura-ble steel, non rusting, long lasting. The metal frame was surrounded by theABS appearance. The table top is made of top white marble glass, it's anti-infection and easy forcleaning.
Pioneer ENT Unit have air storage tank. Compressor and vacuum pump wil start working automati-cally after power on and stop working automatically when storage tank are full of air.
Negative system has 10 seconds delay function after putting suction gun back to original position.Warning system will alarm when the dirt reach to limit warning. Vacuum gauge, bacterial filters, 1.5liters liquid container and effective device to prevent overflow.

Compressed air system continuously adjustable from 0.1 to 4 bars for spray, spray liquid with auto-clavable nozzle for cleaning. lnbuilt motor suction unit with capacity of 70 liters per minute. Com-pressor and vacuum pump will automatically shut down after working continuously for more than 20minutes. Stainless steel tank for compressed air of capacity of 1.5.

lndirect laryngoscope constant temperature system(0-180 seconds adjustable). Constantly warmwater rinsing system(temperature can be adjusted).


Technical parameter:


Power Supply AC220-240V, 50Hz~60Hz
Power <1000VA Blowing gun: 0-0.3Mpa (adjustable)
Spray pressure 0Kpa~0.3Mpa(adjustable), volume: 3~9ml/min, angle: >20°
Suction range >   0~850mmHg(adjustable), silent suction pump: 70 L/min, suction bottle 1500cc
Pre-heating device 450W, heating: 0-180 seconds(adjustable)
Environmental humidity 5℃~40℃
