Product description: Veterinary Ultrasound Scanner B/W Ultrasound machine
INQUIRY

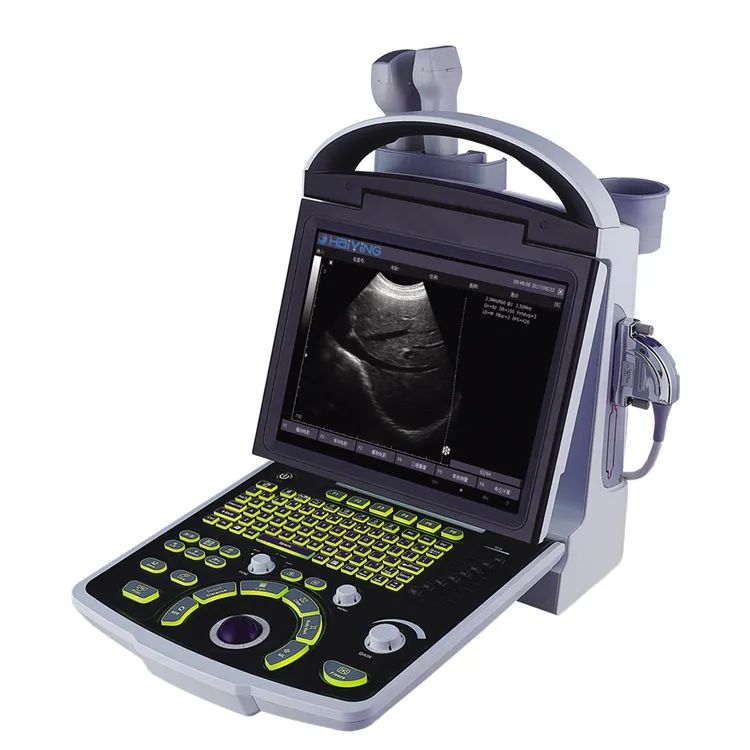

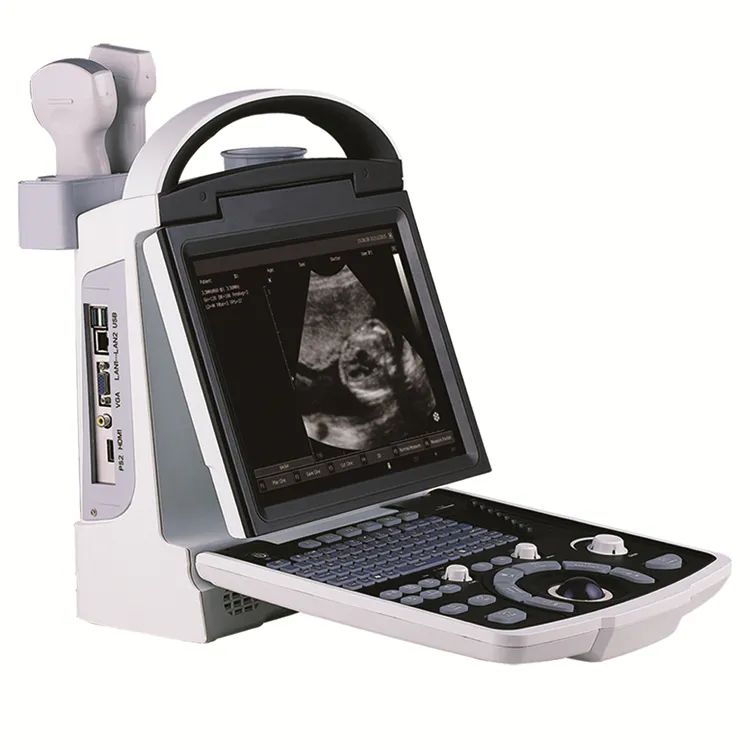

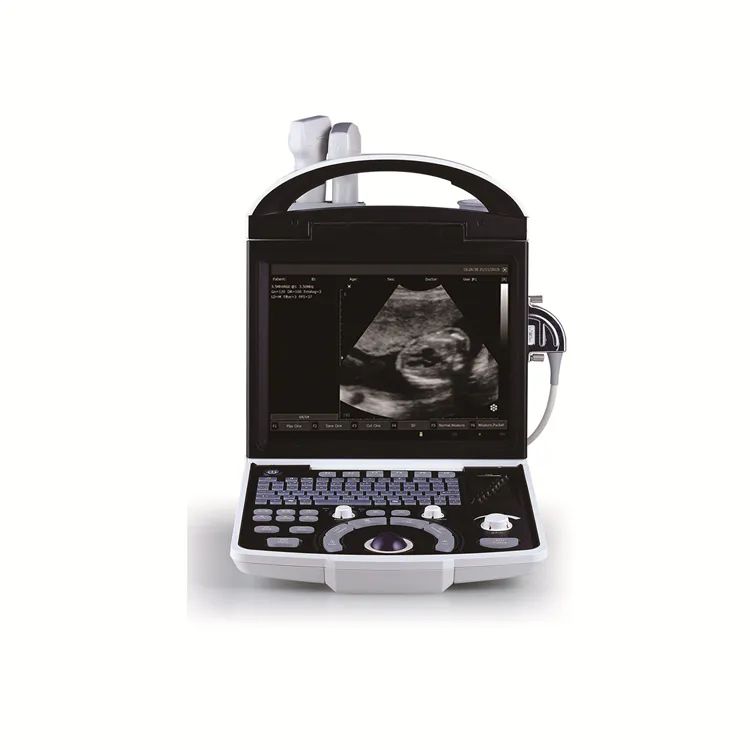

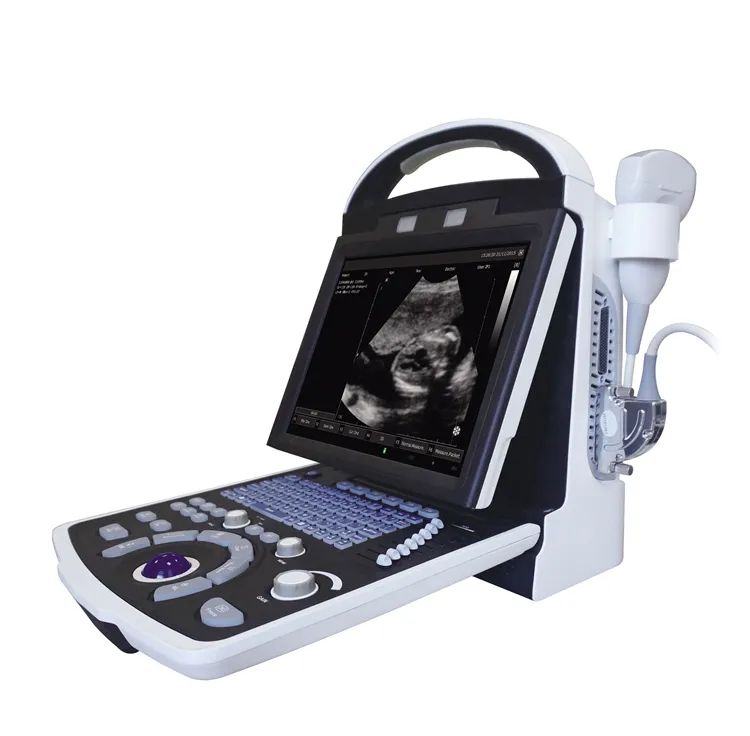

Veterinary Mode 5533 Scanner Laptop B/W Ultrasound machine

Detalis:

Product Name		Portable BW Ultrasound System
Colour		Black-White
Product Features		Portable
Craft		Ultrasound
Material		Metal, Plastic

Specification:

Display mode: B,B/B,4B,M,B+M

Scanning Mode: Electric convex, Electric linear, Electric micro-convex

Imaging technology: full-digital beam forming, continuous dynamic focusing, dynamic aperture, dynamic apodization, tissue harmonic imaging, digital receiving focusing, 3D reconstruction

Image processing: pre-processing, post-processing, dynamic range, frame correction, line correction, acoustical power adjustment, left/right conversion, up/down conversion, gamma correction

Dynamic range: Continuously adjustable, 30-200dB

Measurement and calculation:

B mode: distance, area/perimeter, volume, angle, fetal growth curve

M mode: heart rate, time, slope, gestational age, estimated date of delivery

Obstetric analysis software, obstetric measurements, a variety of report page, cardiac measurement and calculation software,urinary measurement and calculation software.

Monitor: 12.1 inch monitor VGA

Probe connector: 2

Gray Scale: 256

TGC: 8 TGC adjustments

Power supply: dual power supply

Storage function: image storage, cine loop storage, mass storage capacity, measurement result storage, report storage

Cine -loop: max 1024 frames

Output port: AV, HDMI, VGA, USB

Matching Printer: Laser/Video/Inkjet/Thermal printer

Report: Display, storage and print report directly

Work-station: built-in ultrasonic work-station software, IPC of high stability, , DICOM

Standard Configuration
