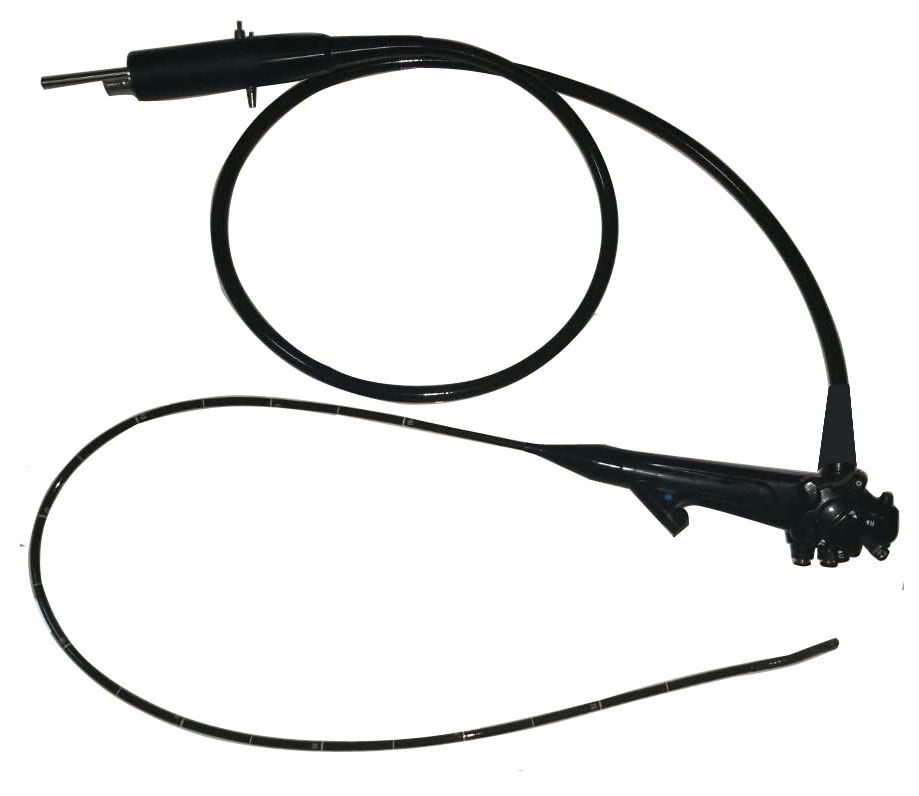

Video Colonscope(FD-49S)


Flexible video colonoscope specification:

Series No.

Item name

Technical parameter

1

Resolution

≥8.34 lp/mm

2

View of Field

145°

3

Depth of View

3100mm

4

Range of Tip Bending

Up 180°, Down 180°,

L 160°, R 160°

5

Working Length

1700/1550/1330mm

6

Diameter of Distal End

Ф12.8mm

7

Diameter of Insertion Tube

Ф12.8mm

8

Max Diameter of Insertion Tube

Ф13.2mm

9

Diameter of Instrumental Channel

Ф3.7mm

10

Optical Sensor

1280*720 PIX
















Image processing part technical parameter:

1, white balance automatic adjustment

2, HD COMS, megapixel

3, the image brightness is adjustable, 101 levels adjustable .

4, red saturation is adjustable, 101 levels adjustable.

5, green saturation is adjustable, 101 levels adjustable.

6, blue saturation is adjustable, 101 levels adjustable.

7, image extinction mode: average / peak.

8, image extinction area: large, medium and small.

9, image sharpness: 0-15

10, image gain: 0-15

11, image gamma: 0-15

12, image border: octagon, round

13, HDMI and DVI image signal output

14. Image freeze, playback, storage and video recording functions.

15, patient information input function (with keyboard input)

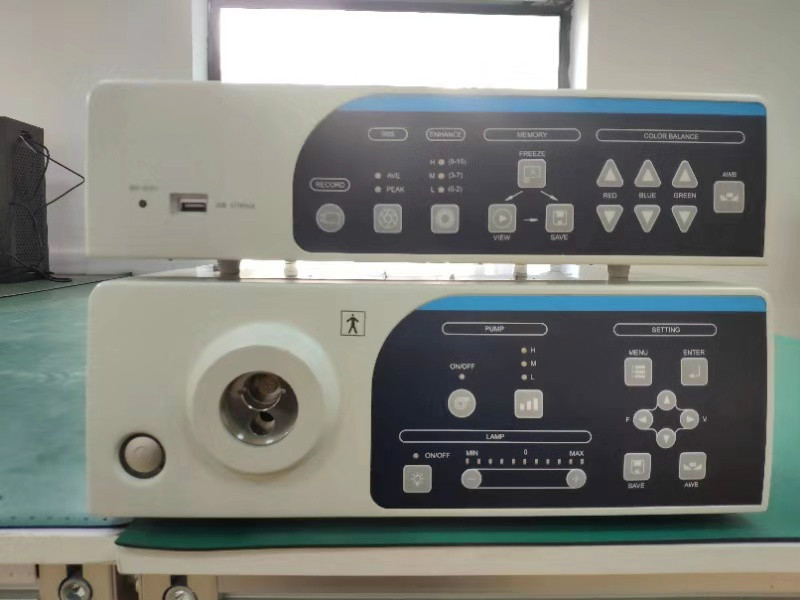

Cold light source technical parameter:

1. When the power of the LED lamp is equal to 40W, the luminous flux is 1000LM.

2, color rendering index 90, color temperature 5600K

3, the air pump pressure: 0.05Mpa;

4, air pump flow Q: 0.25m3 / h Q 0.55m3 / h, high, medium and low third gear.

5. Lamp life span: 25000 hours

6. Voltage: 110-240V, 50-60Hz
