Endoscope System

  • Veterinary Video Gastroscope
Veterinary Video Gastroscope

Veterinary Video Gastroscope

  • Veterinary video Gastroscope
  • Video Gastroscope
  • Veterinary video endoscope
  • video colonoscope
  • Product description: Veterinary Video Gastroscope-Videoscope-Video endoscope
  • INQUIRY

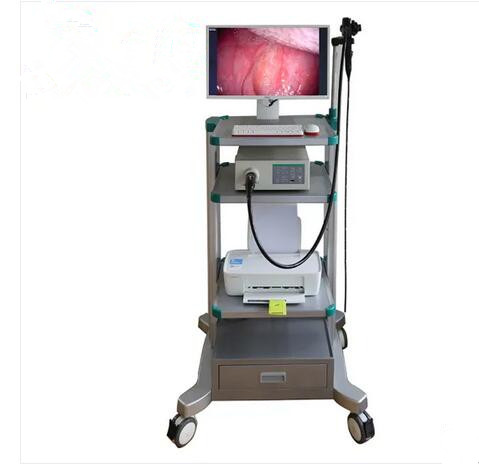

Veterinary Gastroscope Videoscope

Product Specification:
  1. White balance
  2. Photo resolution: 1280X720
  3. Video resolution: 1280X720/30Fps
  4. Storage capacity: built-in 500G hard disk
  5. Output image resolution: 1920X1080
  6. Monitor: 24 inch full HD monitor (DELL)
  7. Light source: LED light source (CRI: 93%, Illumination: 1000Lm, adjustable)
  8. Air pump with 3 shifting gears
  9. Built-in medical records management software, and support keyboard and mouses.
  10. It generates reports automatically, and can connect to printer directly.
  11. Portable design (With 12 inch integrated monitor and battery module)
  12. Support rigid endoscope camera system (Optional)


Specification

Endoscopes

HA37

HW37

HU37T

View of Field

145°

145°

145°

Depth of View

3mm-100mm

3mm-100mm

3mm-100mm

Range of Tip

Bending

Up 210° L 100°

Down 90°R 100°

Up 210° L 100°

Down 90°R 100°

Up 180° L 160°

Down18°R160°

Diameter of

Distal End

Φ6.3mm

Φ8.3mm

Φ12.8mm

Diameter of

Insertion Tube

Φ6.3mm

Φ8.3mm

Φ12.8mm

Diameter of

Instrumental

Channel

Φ2.0mm

Φ2.8mm

Φ3.7mm

Working Length

1050mm

1500mm

3300mm

Optical Sensor

HD 720P

HD 720P

HD 720P
