Product description: Surgical Nitinol Braiding Intestinal Pylorus Stent
INQUIRY

Surgical nitinol Braiding intestinal pylorus stent

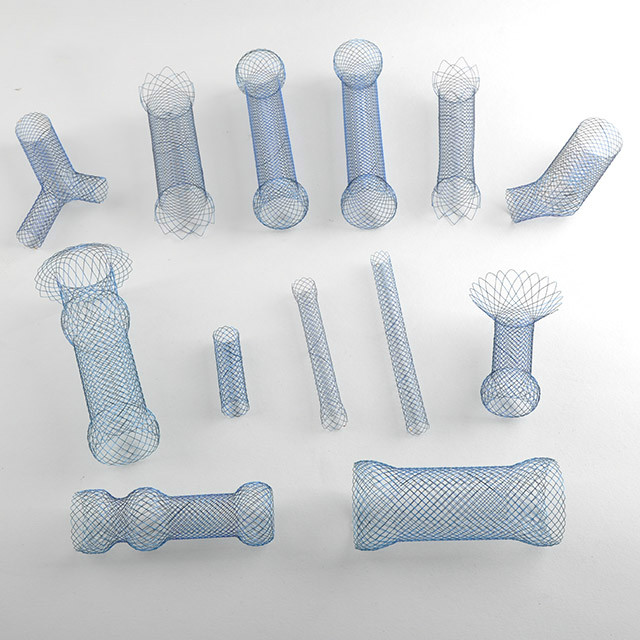

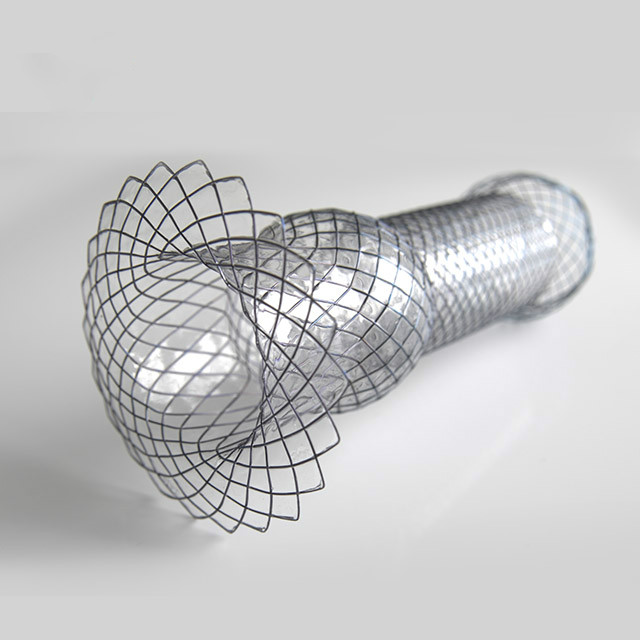

Gastric Fistula Stent Picture

Usage:

Be used to dilate the esophagus,cardia and anastomotic stoma stenosis and plug esophageal fistula.

Characteristics:

1.The stent will engender a continued gentle radial tensile force, acting on the inner wall of esophageal to expand the stenosis gradually and rebuilt the unobstructed passage.

2.The covered structure effectively avoids the tumor tissue ingrowth, reducing the possibility of second stenosis.

3.Lasso in the near-end of the stent, easy to be recycled.

4.Anti-refulx stents can be chosen to effectively restrain the gastroesophageal reflux disease.

SPECIFICATION TABLE

for Umbrella Gastric Fistula Stents

Stent diameter

(mm)

Middle/near-end/far-end

(mm)

Length

(mm)

Specification of introducer system

(Pipe diameter Fr × effective working length mm)

16/24

60/80/100/120

24Fr × 700

18/26

60/80/100/120

24Fr × 700

For Covered esophagus stent

Stent diameter (mm)	Middle/end (mm)	Length (mm)	Specification of introducer system (Pipe diameter Fr × effective working length mm)
16	16/24	60/80/100/120/140	24Fr × 700
18	18/26	60/80/100/120/140	24Fr × 700
20	20/28	60/80/100/120/140	24Fr × 700
22	22/28	60/80/100/120/140	24Fr × 700

For Covered Segmented Esophagus Stent

Stent diameter (mm)	Middle/end (mm)	Length (mm)	Specification of introducer system (Pipe diameter Fr × effective working length mm)
16	16/24	60/80/100/120/140	24Fr × 700
18	18/26	60/80/100/120/140	24Fr × 700
20	20/28	60/80/100/120/140	24Fr × 700
22	22/28	60/80/100/120/140	24Fr × 700
