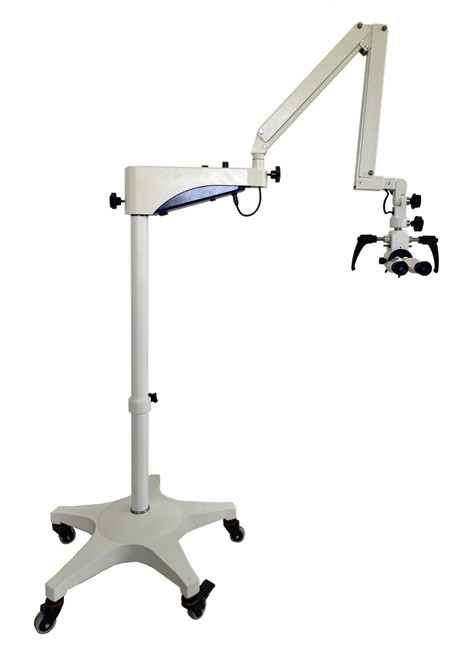

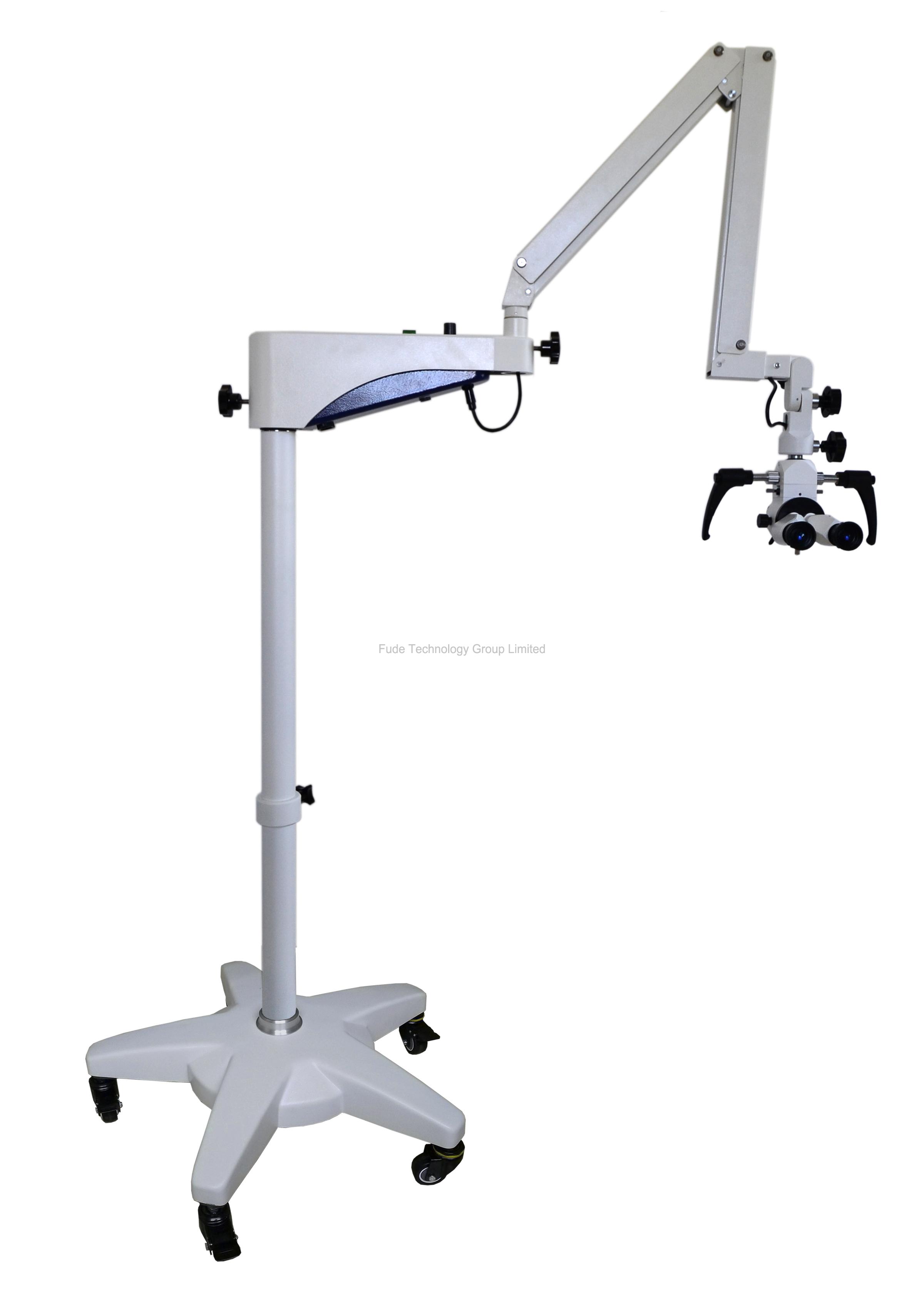

ENT Operating Microscope (FD-A101-2 Series)


Technical data:

Key Features

3-step magnification adjustment: 0.6x, 1.0x, 1.6x

Two objectives with different focusing distance

High brightness 10W LED illumination

Total Magnification: 2.4x-12x

Specification

Observation angle

Straight

Magnification of observation

6x

Interpupillary distance

50mm-80mm

Diopter adjustment

±5D

Two Objectives

F=200mm, 300mm, Two Objectives

Magnification changer

3-step: 0.6x, 1.0x, 1.6x

Total Magnification

2.4X-12X

Linear field

81-15.8mm

Fine focusing distance

10mm

Illumination

Coaxial illumination with 10W LED source, brightness adjustable

Filter

Build-in green and yellow filter

Arm and stand

Two part arms and one floor stand

Optical Parameter

Objective Focus

F=200mm

F=250mm(Optional)

F=300mm

F=400mm(Optional)

magnification

1.6x

1.0x

0.6x

1.6x

1.0x

0.6x

1.6x

1.0x

0.6x

1.6x

1.0x

0.6x

Total magnification

12x

7.5x

4.7x

9.6x

6x

3.7x

8x

5x

3x

6x

3.8x

2.3x

Linear field(mm)

15.8

25.3

40.6

19.7

31.6

50.7

23.6

37.9

60.8

31.5

50.5

81.0

Exit pupil diameter(mm)

1.04

1.66

1.04

1.66

1.04

1.66

1.04

1.66

Exit pupil distance(mm)

15.3

Resolution (LP/mm)

67

44.5

29.7

60

35.4

27

47.2

31.5

23.6

35

27

19.8
