ENT Equipment

  • G60 ENT Treatment Unit
G60 ENT Treatment Unit

G60 ENT Treatment Unit

  • ENT Unit
  • ENT Treatment Unit
  • ENT Worsktation
  • ent examination unit
  • Product description: Ear Nose and Throat Treatment Unit-ENT Treatment Unit-ENT workstation-ent diagnosis station-ENT Unit
  • INQUIRY

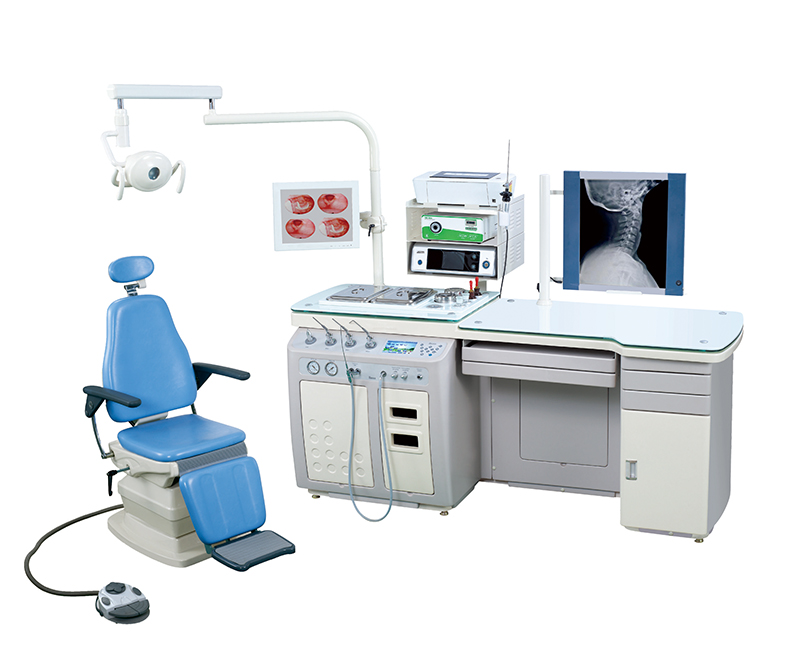

G60 completed hospital Ear Nose and Throat Treatment Unit with patient chair

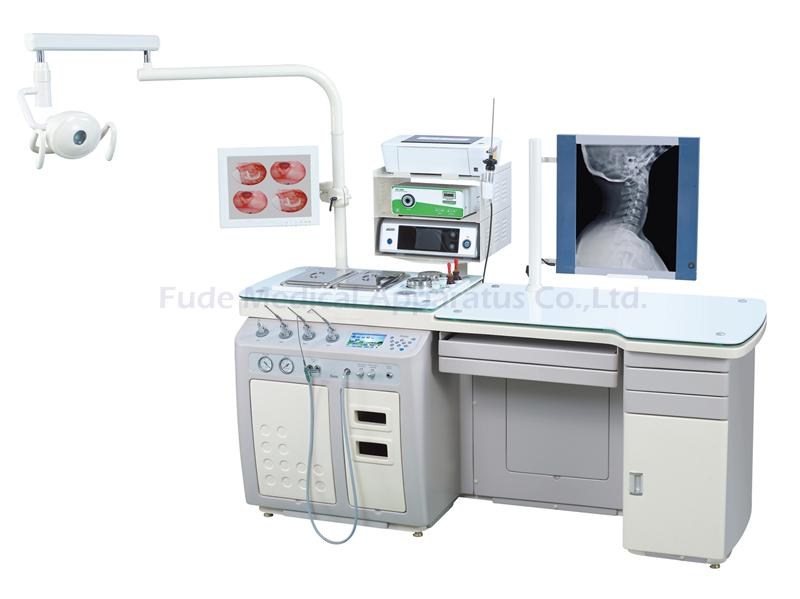

G60 ENT Treatment Unit picture:



Detailed description:

STANDARD EQUIPMENT

QUANTITY

OPTION

1.LED illuminating light

1

Imaging system:

2.Spray gun (unbent 2 & bend 1)

3

1 CCD/3 CCD camera

3.Suction gun

1

15 inch LCD monitor

4.Blowing gun

1

Computer (17 inch LCD display/professional endoscope sofeware)

5.Laryngoscope pre-heater

1

Pinter

6.Built-in LED light source

1

Fiber cable

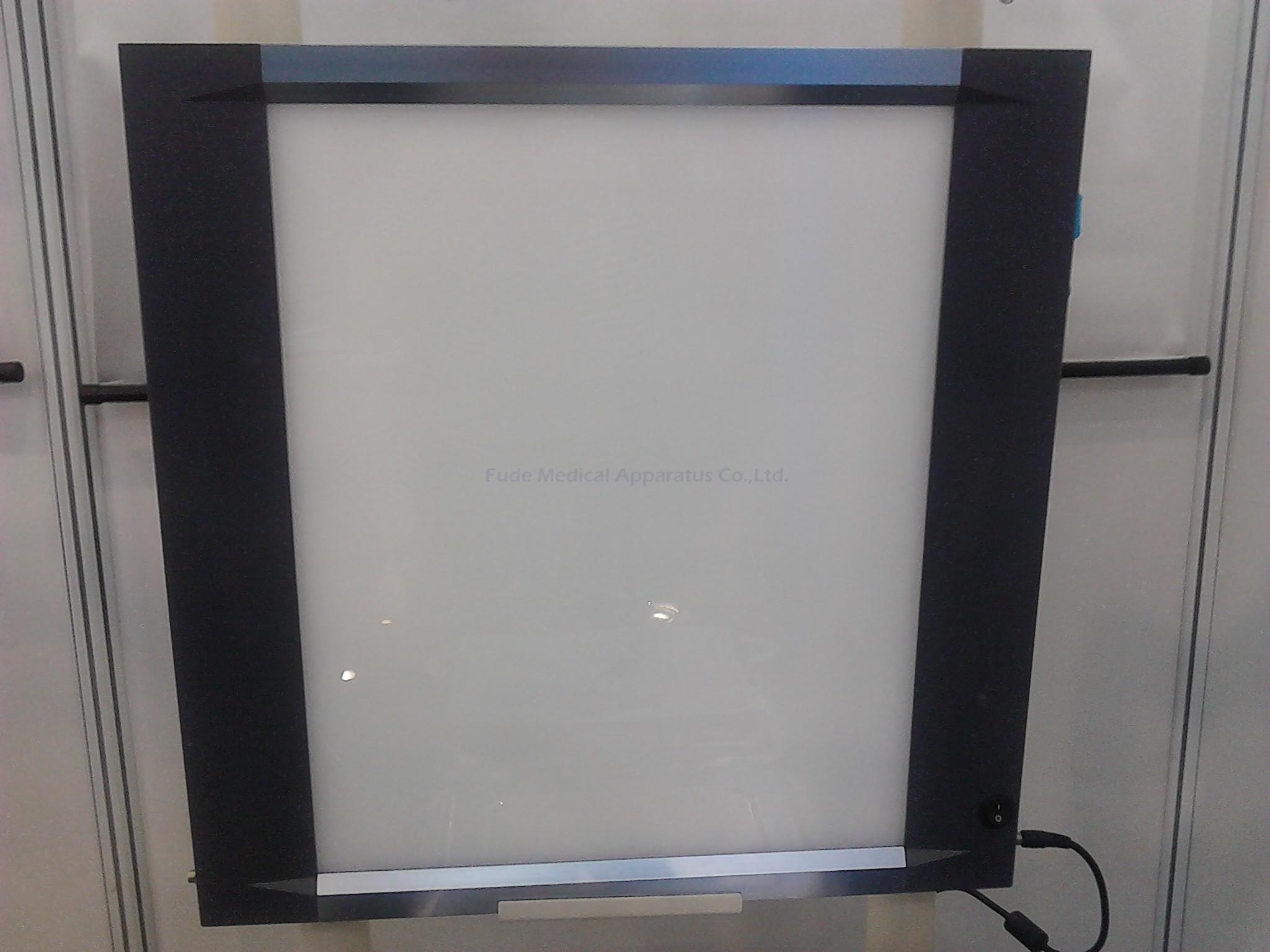

7.Luxury thin film viewer

1

Hernia cold light cource

8.Blow-off equipment system (with warning system)

1


9. Instrument tray

2

Endoscope:

10.Cotton cup

2

Φ2.7/4mm,0° /30° otoscope

11. Medical bottle

4

Φ2.7/4mm,0° /30° nasoscope

12.Built-in waste tank

1

Φ8mm,70° /90° laryngoscope

13.Built-in equipment recycle tank

1

Constant temperature rinsing system

14. Doctor stool

1

LED headlight

15. Vacuum pump

1

5 inch intelligent touched contrilled

16.Compressor

1

Patient chair


Description:

G60 ENT Unit is also constitute of two parts: operation table and writing table. The main frame is made of durable steel, the metal frame was surrounded by the ABS appearance. The table top is made of top white marble glass, it’s anti-infection and easy for cleaning.
Compressed air system continuously adjustable from 0.1 to 4 bars for spray, spray liquid with autoclavable
nozzle for cleaning. Inbuilt motor silent suction unit with capacity of 70 liters per minute. Compressor and vacuum pump will automatically shut down after working continuously for more than 20 minutes.
Stainless steel tank for compressed air of capacity of 1.5, Compressor unit completely separate from suction
unit. Handle for compressed air have a regulation valve.
38℃ constantly warm water rinsing system.


Technical parameter:
Power Supply: AC220-240V, 50Hz~60Hz;
Power: 800W;
Positive pressure: 0-0.35Mpa (adjustable), 450W;
Suction range:0-850mmHg (adjustable), 450W; silent suction pump: 70 L/min, suction bottle 2500cc;
Spray volume: 3-9ml/min, spray angle: >20°;
Pre- heating device:450W,0-180 seconds(adjustable);
LED Cold light source: 12V, 10W, 5000-10000K;
LED Operating headlight: 3W, cold light, adjustable spot light.

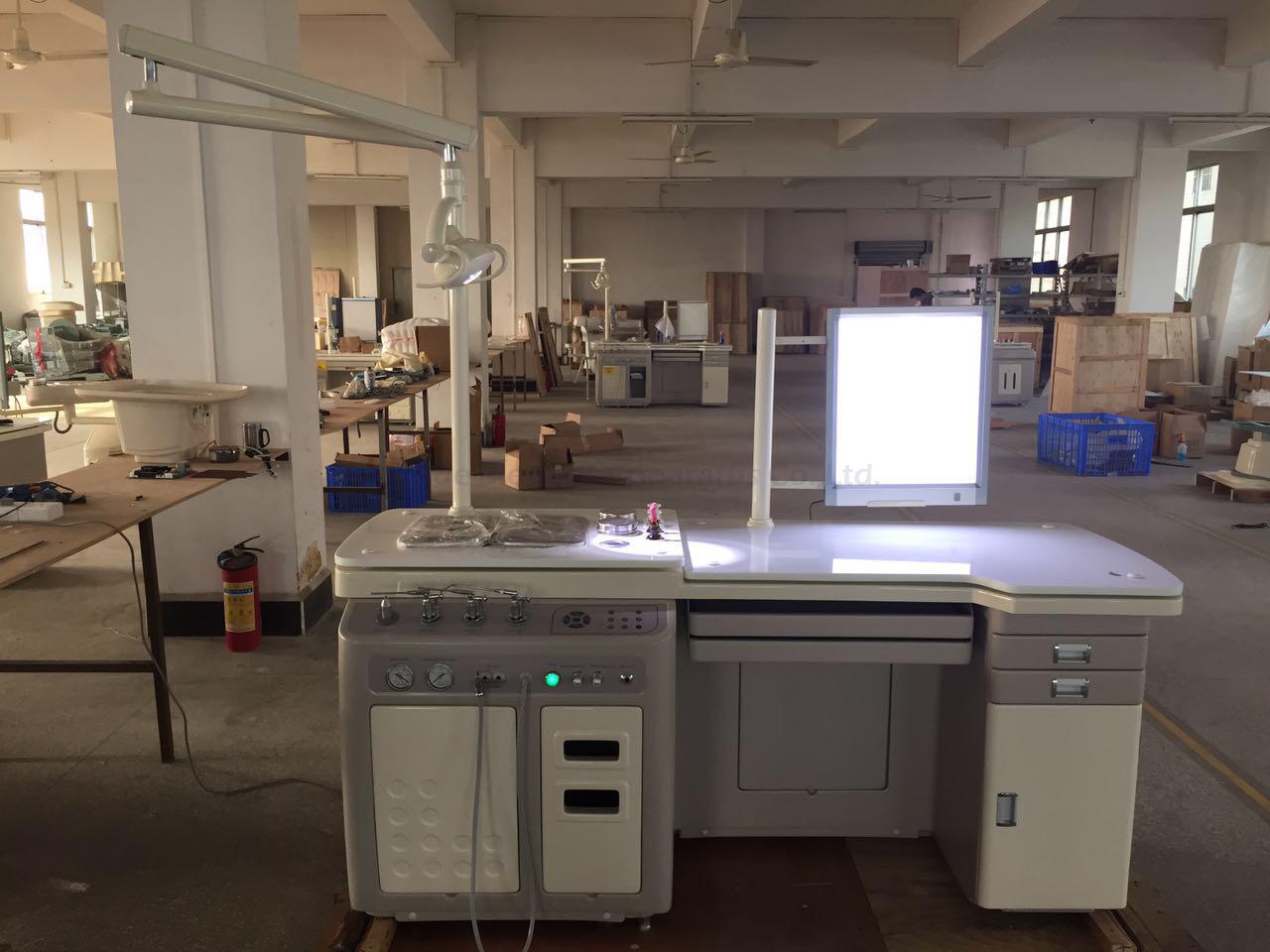

Factory workshop picture:
